6kW (N+1)X1 Laser Combiner Module
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Large Dispersion for Pulse Streching

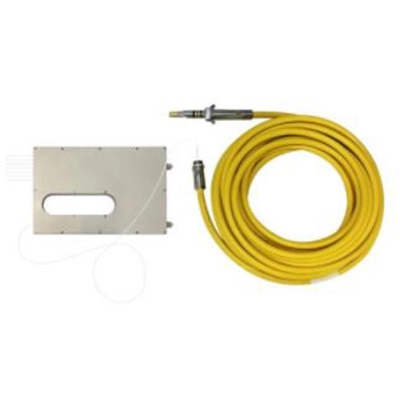

AFR's High Power Laser Combiner Module is designed for combining the power from N units of kW class fiber lasers and one aiming beam with high efficiency. Available in bare fiber or DragonTM as the output of the module. DragonTM is a high power laser cable with QBH compatible output connector.
Specifications | ||
Parameter | Unit | Value |
Product Type |
| (N+1)x1/Nx1 |
Operation Wavelength Range | nm | 1060-1080 |
| Input Fiber Type | LMA-GDF-14/250-M or LMA GDF 20/400-M | |
Red Beam Fiber Type |
| HI 1060 or LMA-GDF-10/125-M |
Output Fiber Type |
| Nufern BD-S100/120/360-STN,NA0.22 |
| Max. Input Power Handling per Port | W | 2000 |
Backward Power Handling | W | 1000 |
| Output Fiber Length | m | 2 |
| Armor Cable Length | m | 20 |
| Min. Combing Efficiency | % | 97 |
| Typ. Combining Efficiency | % | 98 |
Package Dimensions | mm | 303 (L) × 203 (W) × 27 (H) |
