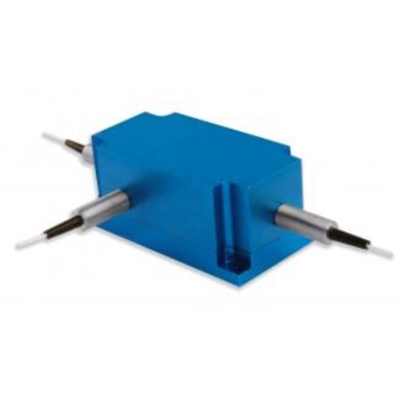

1064nm 200W In-Line Isolator
⠀⠀⠀⠀⠀⠀⠀⠀⠀
ideal for fiber laser and instrumentation applications
The High Power Polarization Maintaining Circulator is characterized with low insertion loss, high isolation, high power handling, high return loss, high extinction ratio. It is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Operating Wavelength Range | nm | ±10 |
Min. Isolation, λc, 23 ℃ | dB | 28 |
Typ. Insertion Loss, 23 ℃ | dB | 0.3 |
Max. Insertion Loss, 23 ℃ | dB | 0.4 |
Max. Polarization Dependent Loss | dB | 0.2 |
Min. Return Loss | dB | 50 |
Max. Average Optical Power | W | 200 |
Max. Peak Power for ns Pulse | kW | 30 |
Max. Tensile Load | N | 5 |
Fiber Type |
| Specified by ordering info |
Operating Temperature | ℃ | 10 to +50 |
Storage Temperature | ℃ | 0 to +60 |
