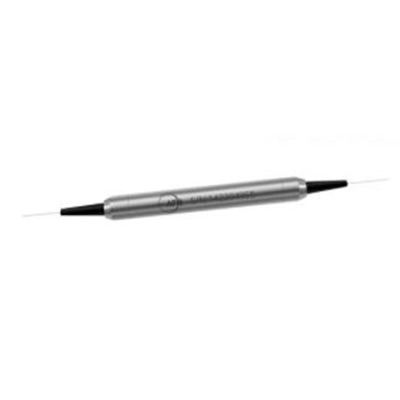

1064nm 300mW PM Isolator

Name: 1064nm 300mW PM Isolator
Availability: InStock

⠀⠀⠀⠀⠀⠀⠀⠀⠀

ideal for amplifiers, fiber lasers and test instrument applications

The 1064 nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrument applications.

Specifications
Parameter	Unit	Single Stage		Dual Stage
		Grade P	Grade A	Grade P	Grade A
Center Wavelength (λc)	nm	1064
Typ. Peak Isolation	dB	38	36	55	52
Min. Isolation, λc, 23 ℃	dB	35	32	45	42
Typ. Insertion Loss, λc, 23 ℃	dB	1.5	1.6	2.4	2.6
Max. Insertion Loss, λc, all temperature	dB	2.0	2.2	3.4	3.6
Min. Extinction Ratio	dB	20	18	20	18
Min. Return Loss (Input/Output)	mm	55/50
Max. Optical Power (Continuous Wave)	mW	300
Polarization Plane of Input		PM 980 Panda fiber
Operating Temperature	℃	0 to +50
Storage Temperature	℃	-40 to +85
