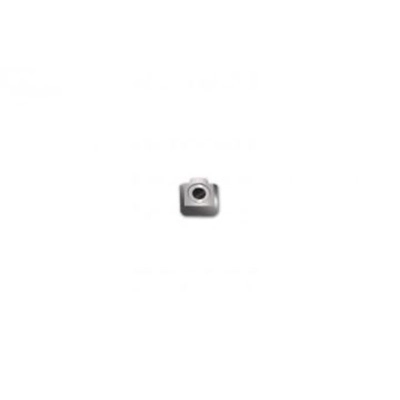

1310/1550nm Free Space Isolator Epoxy
⠀⠀⠀⠀⠀⠀⠀⠀⠀
high isolation, low insertion loss and large aperture
The Free Space Isolator Epoxy is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make it flexible to fit with different diode laser packaging requirements.
Specifications | |||
Parameter | Unit | Single Stage | Dual Stage |
Center Wavelength (λc) | nm | 1310 or 1550 | |
Typ. Insertion Loss | dB | 0.12 | 0.20 |
Max. Insertion Loss | dB | 0.30 | 0.50 |
Peak Isolation | dB | 40 | 55 |
Min. Isolation, 23 ℃ | dB | 30 | 40 |
Clear Aperture | mm | 0.4-0.9 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Polarization Plane of Input |
| As Indicated | |
Tilt Angle of Input Plane | degree | 6 | |
Operating Temperature | ℃ | -40 to +85 | |
Storage Temperature | ℃ | -40 to +85 | |
