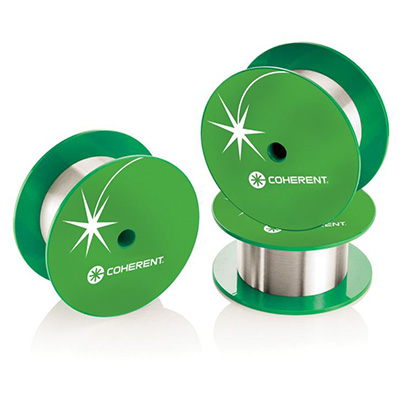

Ytterbium-Doped Single-Mode Single Clad Fiber
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Smart Product Number: PM-YSF-HI-HP
Ytterbium-Doped Single-Mode Single Clad Fiber
Nufern single-mode Yb-doped fibers are designed to support low power fiber lasers and amplifiers based on singlemode diode pump technology, rather than the multimode pumps used in high-power applications. For applications where high efficiency and very short device lengths are critical, these single-mode fibers are compatible with standard "telecom" fiber technology ensuring low splice loss to numerous fiber pigtailed components. The PM variety is designed with the PANDA-style stress structure which delivers linearly polarized light suitable for frequency conversion. These fibers make the ideal gain medium for low average power femtosecond fiber lasers and pre-amplifiers for higher power double-clad amplifiers. These High Performance (-HP) versions provide tighter optical and geometric tolerances, improving device performacnes, system compatibility and manufacturing process control.
Optical Specifications
Operating Wavelength
1015 – 1115 nm
Core NA
0.110
Mode Field Diameter
7.5 ± 0.7 µm @ 1060 nm
Cutoff
860 ± 50 nm
Core Attenuation
≤ 10.0 dB/km @ 1200 nm
Core Absorption
85.0 ± 10.0 dB/m at 915 nm
250.0 dB/m at 975 nm
Birefringence
> 2.8 × 10-4
Geometrical & Mechanical Specifications
Cladding Diameter
125.0 ± 1.0 µm
Core Diameter
6.0 µm
Coating Diameter
245.0 ± 10.0 µm
Coating Concentricity
< 5.0 µm
Core/Clad Offset
≤ 0.50 μm
Coating Material
Acrylate
Operating Temperature Range
-55 to 85 °C
Prooftest Level
≥ 200 kpsi (1.4 GN/m²)
Comments
Coating Requirements: UV Cured, Dual-Acrylate Coating
[ COLLAPSE ALL ]
Features & Benefits
- Single-mode output — Compatiable with standard telecom 980/1060 nm fiber-based components providing low splice loss
- PANDA-style stress structure — Linearly polarized output for frequency conversion
- High Ytterbium concentration — Short fiber lengths to reduce detrimental non-linear effects
- High slope efficiency (typically 75%) — Efficient utilization of pump power
- Higher Prooftest Yields — Critical for long-term reliability in tight bend applications
Typical Applications
- Low power CW and pulsed fiber lasers
- Femtosecond fiber lasers
- Pre-amps for high-power, double-clad devices
Nufern’s optical fiber products, including rare-earth doped, gyro, polarization-maintaining, radiation resistant, photosensitive, multimode and single mode, and any other optical fiber product including custom optical fibers, may be covered by one or more of the following pending or issued U.S. Patents, each of which is owned by or licensed by Nufern:
6,779,364; 6,832,026; 6,904,214; 6,950,586; 7,003,206; 7,050,686; 7,062,137; 7,110,647; 7,116,887; 7,167,621; 7,317,857; 7,371,019; 7,386,210; 7,400,812; 7,483,610; 7,634,164; 7,724,422; 5,949,941 (licensed from Furukawa Electric Co. of North America).
Moreover, use of Nufern’s optical fiber products, including modifications thereof, combinations with other products, or certain specific uses can necessitate additional customer licensing, particularly with respect to U.S. Patent nos. 5,818,630 (IMRA America, Inc.) and 6,496,301 (The United States of America as represented by the Secretary of the Navy). See the terms and conditions specific to your purchase.
SPECIFICATION SHEETDOWNLOAD
Technical Information
Brochures NuPANDA Flyer [PDF] NuYDF Flyer [PDF] |
