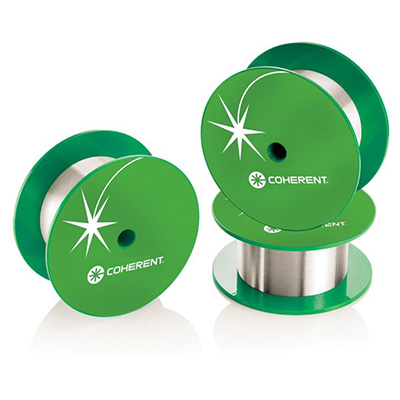

Polarization Maintaining 980 nm Telecommunication Fiber
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Smart Product Number: PM980-XP
Polarization Maintaining 980 nm Telecommunication Fiber
Nufern’s Polarization Maintaining Telco fibers are designed for today's most advanced networks. Optimized for use at 980 nm, these fibers are used in all PM applications for data and telecom. Nufern has applied its unique manufacturing facility and capabilities to this product area and has established leading optical, mechanical and geometrical tolerances. The bend insensitive versions of our fibers offer lowest bend loss and extinction ratios at small bend diameters enabling our customers to reduce package sizes. Available in either 250 or 400 micron coating diameters and prooftested to 200 kpsi, Nufern's PM fibers will meet the demands of all current and future applications.
Optical Specifications
Operating Wavelength
970 – 1550 nm
Core NA
0.120
Mode Field Diameter
6.6 ± 0.5 µm @ 980 nm
Cutoff
920 ± 50 nm
Core Attenuation
≤ 2.5 dB/km @ 980 nm
Beat Length
≤ 2.7 mm @ 980 nm
Normalized Cross Talk
≤ - 40.0 dB at 4 m @ 980 nm
≤ - 30.0 dB at 100 m @ 980 nm
Geometrical & Mechanical Specifications
Cladding Diameter
125.0 ± 1.0 µm
Core Diameter
5.5 µm
Coating Diameter
245.0 ± 15.0 µm
Coating Concentricity
< 5.0 µm
Core/Clad Offset
≤ 0.50 μm
Coating Material
Acrylate
Operating Temperature Range
-40 to 85 °C
Prooftest Level
≥ 200 kpsi (1.4 GN/m²)
Comments
Coating Requirements: UV Curable, Dual Acrylate.
Special Core Dopants: SiO2/GeO2.
The Bend Loss at 980 nm (100 turns as LTBR) is <0.001 dB, by design.
The Bend Radius for 0.05 dB/100 Turns at 980 nm is much less than LTBR, by design.
The Bend Radius for 0.05 dB/100 turns at 1550 nm is 15 mm, by design.
[ COLLAPSE ALL ]
Features & Benefits
- Tight specifications — Highly deterministic results, highest product yield
- High fatigue failure resistance — Longest service life
- Bend insensitive — Survives application in tight geometries (B version)
- All fiber prooftested to > 200 kpsi — Critical for ensuring long term reliability
Typical Applications
- Pump pigtails
- Grating stabilizers
- PM patchcords
- Polarization sensitive devices
Nufern’s optical fiber products, including rare-earth doped, gyro, polarization-maintaining, radiation resistant, photosensitive, multimode and single mode, and any other optical fiber product including custom optical fibers, may be covered by one or more of the following pending or issued U.S. Patents, each of which is owned by or licensed by Nufern:
6,779,364; 6,832,026; 6,904,214; 6,950,586; 7,003,206; 7,050,686; 7,062,137; 7,110,647; 7,116,887; 7,167,621; 7,317,857; 7,371,019; 7,386,210; 7,400,812; 7,483,610; 7,634,164; 7,724,422; 5,949,941 (licensed from Furukawa Electric Co. of North America).
Moreover, use of Nufern’s optical fiber products, including modifications thereof, combinations with other products, or certain specific uses can necessitate additional customer licensing, particularly with respect to U.S. Patent nos. 5,818,630 (IMRA America, Inc.) and 6,496,301 (The United States of America as represented by the Secretary of the Navy). See the terms and conditions specific to your purchase.
