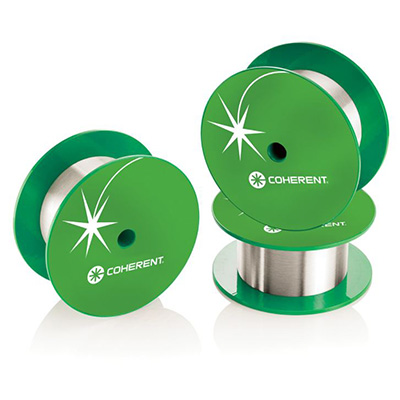

10/125 Precision Matched Passive LMA Double Clad Fiber
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Smart Product Number: PLMA-GDF-10/125-M
10/125 Precision Matched Passive LMA Double Clad Fiber
Nufern’s large mode area (LMA) and Polarization Maintaining LMA (PLMA) passive double clad fibers are ideally suited for applications spanning military, industrial and medical including linearly polarized fiber lasers and amplifiers. These fibers feature a 10 micron diameter core and 125 (PLMA) or 130 (LMA) micron diameter clad size with a low NA (0.075) core. They are precision matched to their active Yb-doped 10/130 LMA and PLMA matched counterparts to ensure excellent splice compatability and low loss. As with all Nufern standard Large Mode Area (LMA) fibers, these fibers are proof-tested to 100 kpsi, an industry requirement for long term reliability. They utilize the latest fiber design and NuCOATFA coating technology to ensure excellent preservation of beam quality and extended operating life demanded by today’s industrial fiber laser applications. These precision matched fibers are available in both non-PM and PANDA-style PM fibers.
Optical Specifications
- Operating Wavelength
- 1060 – 1600 nm
- Core NA
- 0.075 ± 0.005
- First Cladding NA(5%)
- ≥ 0.460
- Core Attenuation
- ≤ 40.00 dB/km @ 1300 nm
≤ 20.00 dB/km @ 1200 nm - Cladding Attenuation
- ≤ 15.0 dB/km @ 1095 nm
- Birefringence
- nominal 3 × 10-4
Geometrical & Mechanical Specifications
- Cladding Diameter
- 125.0 ± 1.0 µm
- Core Diameter
- 11.0 ± 1.0 µm
- Coating Diameter
- 245.0 ± 10.0 µm
- Coating Concentricity
- < 5.0 µm
- Core/Clad Offset
- ≤ 0.70 μm
- Prooftest Level
- ≥ 100 kpsi (0.7 GN/m²)
Comments
Coating Requirements: Low Index polymer coating.
These precision matched fibers are included in our precision matched sets - see PLMA-YDF-10/125-M and LMA YDF-10/130-M
[ COLLAPSE ALL ]
Features & Benefits
- NuCOATFA fluoroacrylate coating — Greater fiber durability in extreme environmental operating & storage conditions
- LMA core design — Useful for transmitting high CW powers
- “Few” moded core design — Easy to maintain single mode LP01 beam through fiber & components
- PANDA-style stress structure for increased birefringence — Superior optical performance and uniformity
- All fiber proof tested to > 100 kpsi — Critical for ensuring long term reliability when coiling
Typical Applications
- Pulsed fiber lasers and amplifiers
- Material processing
- LIDAR
- Non-linear optics / frequency doubling
Nufern’s optical fiber products, including rare-earth doped, gyro, polarization-maintaining, radiation resistant, photosensitive, multimode and single mode, and any other optical fiber product including custom optical fibers, may be covered by one or more of the following pending or issued U.S. Patents, each of which is owned by or licensed by Nufern:
6,779,364; 6,832,026; 6,904,214; 6,950,586; 7,003,206; 7,050,686; 7,062,137; 7,110,647; 7,116,887; 7,167,621; 7,317,857; 7,371,019; 7,386,210; 7,400,812; 7,483,610; 7,634,164; 7,724,422; 5,949,941 (licensed from Furukawa Electric Co. of North America).
Moreover, use of Nufern’s optical fiber products, including modifications thereof, combinations with other products, or certain specific uses can necessitate additional customer licensing, particularly with respect to U.S. Patent nos. 5,818,630 (IMRA America, Inc.) and 6,496,301 (The United States of America as represented by the Secretary of the Navy). See the terms and conditions specific to your purchase.
