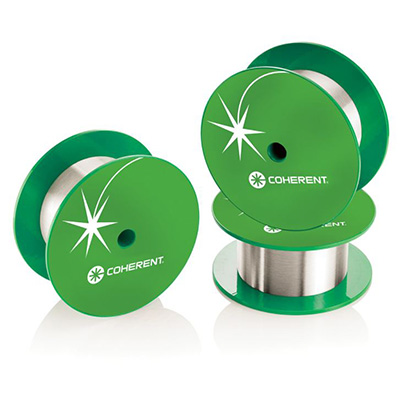

20/400 Precision Matched Active LMA Double Clad Fiber
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Smart Product Number: LMA-YDF-20/400-HP-M
Product Number: 1364048
20/400 Precision Matched Active LMA Double Clad Fiber
The Large Mode Area (LMA) double clad fibers are ideal for high power monolithic fiber lasers and amplifiers. This matched fiber series is based on a 20 micron diameter core and 400 micron diameter clad size with a low NA (0.065) core and consists of Yb-doped fiber and passive beam delivery fibers all made to the highest tolerances in the industry. This fiber utilizes Gen 8 glass composition to ensure excellent preservation of beam quality. The new NuCOATFA-HP high performance coating technology extends the operating life at the higher power levels demanded by today's industrial fiber laser applications.
Optical Specifications
- Operating Wavelength
- 1015 – 1115 nm
- Core NA
- 0.065 ± 0.005
- First Cladding NA(5%)
- ≥ 0.46
- Core Attenuation
- ≤ 30.0 dB/km @ 1300 nm
≤ 15.0 dB/km @ 1200 nm - Cladding Attenuation
- ≤ 15.0 dB/km @ 1095 nm
- Cladding Absorption
- 0.40 ± 0.05 dB/m at 915 nm
- Slope Efficiency
- > 70.0% @ 915 nm
Geometrical & Mechanical Specifications
- Cladding Diameter(flat-to-flat)
- 400.0 ± 10.0 µm
- Core Diameter
- 20.0 ± 1.5 µm
- Coating Diameter
- 550.0 ± 15.0 µm
- Core/Clad Offset
- ≤ 2.00 μm
- Coating Material
- Low Index Acrylate
- Prooftest Level
- ≥ 100 kpsi (0.7 GN/m²)
[ EXPAND ALL ]
Features & Benefits
- Matched fiber series – Ensures splice compatibility across the 20/400 matched series of fibers
- NuCOATFA-HP high performance coating — Greater fiber durability at higher powers and in extreme environmental
operating & storage conditions - State of the art Yb-doped glass — Useful for generating high CW powers
- All fiber proof tested to > 100 kpsi — Critical for ensuring long term reliability when coiling
Typical Applications
- Monolithic high power lasers & amplifiers
- LMA fiber couplers & pump combiners
- High power pump & signal pigtails
- Military, industrial and medical
Nufern’s optical fiber products, including rare-earth doped, gyro, polarization-maintaining, radiation resistant, photosensitive, multimode and single mode, and any other optical fiber product including custom optical fibers, may be covered by one or more of the following pending or issued U.S. Patents, each of which is owned by or licensed by Nufern:
6,779,364; 6,832,026; 6,904,214; 6,950,586; 7,003,206; 7,050,686; 7,062,137; 7,110,647; 7,116,887; 7,167,621; 7,317,857; 7,371,019; 7,386,210; 7,400,812; 7,483,610; 7,634,164; 7,724,422; 5,949,941 (licensed from Furukawa Electric Co. of North America).
Moreover, use of Nufern’s optical fiber products, including modifications thereof, combinations with other products, or certain specific uses can necessitate additional customer licensing, particularly with respect to U.S. Patent nos. 5,818,630 (IMRA America, Inc.) and 6,496,301 (The United States of America as represented by the Secretary of the Navy). See the terms and conditions specific to your purchase.
