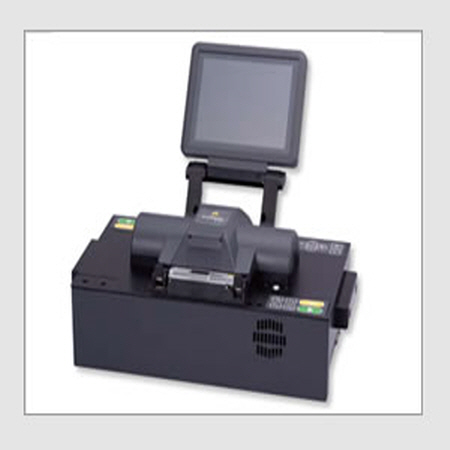

Fitel S183 PM II
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The S183PMII Advanced Fusion Splicer was designed specififically for the demanding production and research applications of the optical components industry, being capable of:
• Splicing specialty and exotic fiber combinations
• Very large diameter fiber splicing (up to 500 μm)
• Polarization maintaining fiber splicing
• High-strength splicing application.
Product Features
>Specialty Splicing Made Easy
.>Fast Splice Time
>Quick Loading & Automatic Machine Adjustment
>Automatic Fiber Holder Release
Technical Specs
Applicable Fibers: SMF, MMF, DSF, NZDSF, CSF, DCF, EDF, PMF, LDF
Fibers Cleave Length: 3 to 5mm with coating clamping / 9 to 11mm with bare Fiber clamping
Cladding Diameter: 80~500μm
Coating Diameter: 160~2000μm
Heating Time: 51 seconds for 60mm sleeves; 40 seconds for 40mm sleeves
Tensile Strength: Typical 300kpsi (25N) with High strength splice
Return Loss >60dB
Splice Programs: 60 Default / 150 Available
Data Interface: USB ver1.1 and Ethernet
Splice Memory: Maximim 2000 splices
Magnification: 215X & 430X
Operating Temperature: 0 to +40°F (without excessive humidity)
Monitor: 6” 5-color LCD monitor
Storage Temperature: -40 to +60°F (without excessive humidity)
Video Output: Analog RGB
Power Source AC 100 to 240V (50 / 60Hz)with AC adaptor
