Ultra-Wideband Tunable Laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Santec
Full-band TSL
420 nm tuning, high performance tunable laser system
- Wide Wavelength Range 1260 to 1680 nm
- Easy and Automated Operation by Software
Overview

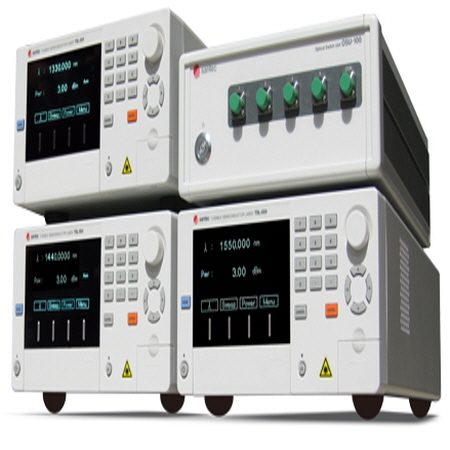

The system combines up to four of our tunable lasers (TSL-550 and TSL-710) with an optical switch module (OSU-100) and control software. The complete Full-band TSL has excellent cost performance, high wavelength accuracy and fast sweeping for use in both R&D and production environments.
Features&Characteristics
- Wide wavelength range 1260 to 1680 nm
- Mode-hop-free wavelength sweeps
- 100 nm/s sweep speed
- Easy and automated operation
- Typical Data -

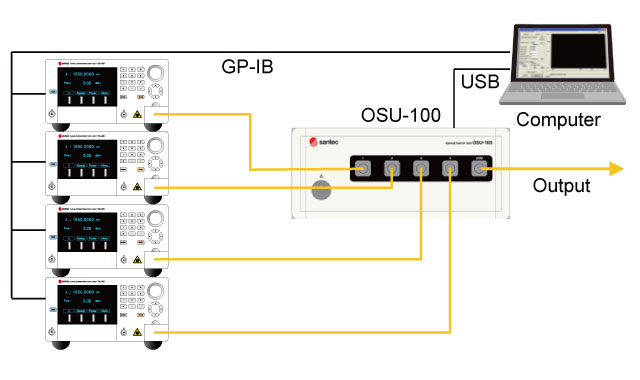

Typical Configuration

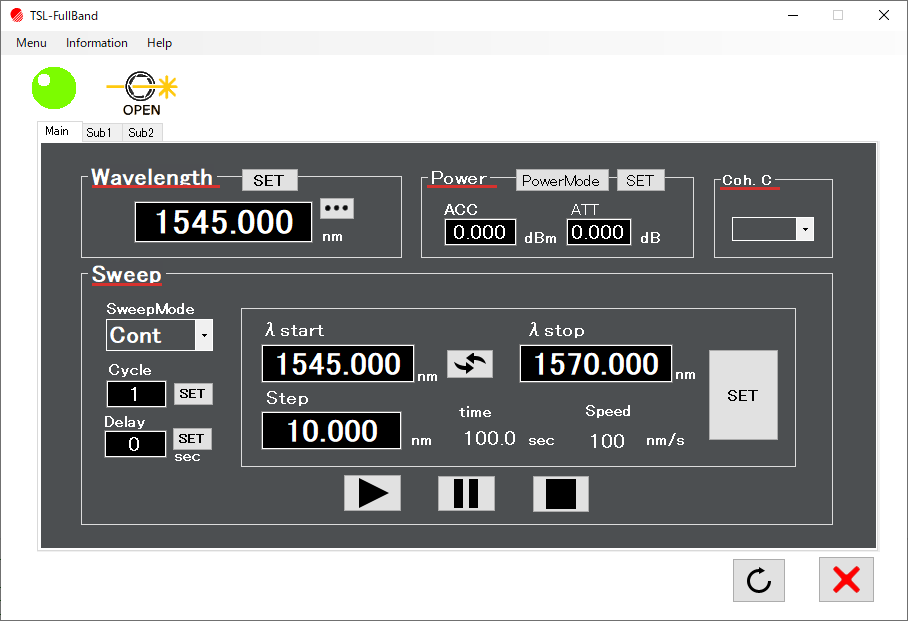

GUI

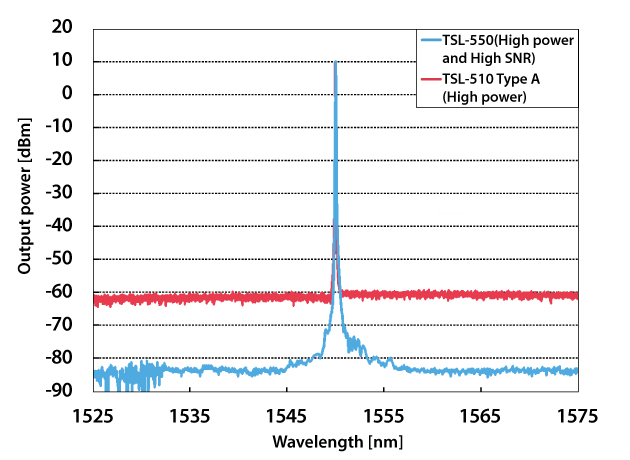

Optical Spectrum-High Output Power & High Signal-to-Noise Ratio-
Applications
- Optical characterization of components and modules:
- Tunable Filters, Interleavers, Fiber Bragg Gratings, Couplers, Splitters, Isolators, Switches, etc
- WSS and Wavelength Blockers
- DWDM components - Silicon photonic material characterization, including micro-cavity ring resonators
- Spectroscopy
- Interferometry
Please refer to here for details. -> Swept Test System
