High Performance Tunable Laser TSL-570
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Santec
TSL-570
A tunable laser that achieves both fast scans and high stability.
- 200 nm/s Rapid Sweep
- Excellent Accuracy (+/- 2 pm) & Resolution (0.1 pm)
- Sealed cavity ensures stability for every wavelength
- Wide Variety of Wavelength Options from 1240 to 1640 nm
- Fine tuning scan range 10 GHz
Overview
Santec’s all new TSL-570 capitalizes on Santec’s 33 years’ experience in tunable laser manufacture. The TSL-570 is a high performance tunable laser with a wide tuning range and an output combining high power and high signal-to-noise ratio. It uses a new optical cavity design with precise speed control up to 200 nm/s and sub-picometer resolution and accuracy.
Tunable lasers are used extensively in photonics; for optical component characterization, photonic integrated circuit testing, quantum photonics, spectroscopy and sensors. Santec’s TSL-570 is a high specification, full feature instrument suitable for all applications. It has a simple to use touch panel display as well as Ethernet, GPIB and USB interfaces for remote control. A Wake-on-LAN (WoL) feature provides convenience for remote installations. Models are available to cover from 1240 to 1640 nm with output powers up to 20 mW.
A new sealed laser cavity is mode-hop-free and provides a stable output at every wavelength. It has 0.1 pm resolution, sub-pm accuracy and a market leading, 90 dB/0.1 nm, ultra-low level of spontaneous source emission. The TSL-570 integrates seamlessly with Santec’s optical power meters (MPM series), optical switches (OSU series) and polarization controllers (PCU series) creating benchmark, turn-key solutions for wavelength dependent loss (WDL) and polarization dependent loss (PDL) measurements (Swept Test System).
Features and Characteristics
- Output power: + 13 dBm
- Signal-to-noise ratio: 90 dB/0.1 nm
- Wavelength accuracy:
- Type A: ±20 pm wavelength accuracy
- Type C: ±5 pm wavelength accuracy
- Type P: ±2 pm wavelength accuracy Wide tuning ranges covering 1240 to 1640 nm
- Ext O-Band 1240 to 1380 nm
- O-Band * 1260 to 1360 nm
- ES-Band * 1355 to 1485 nm
- Ext ES-Band 1355 to 1505 nm
- CL-Band * 1500 to 1630 nm
- SCL-Band 1480 to 1640 nm
- U-Band (to be announced)
* Not available in Type P
- Typical Data -

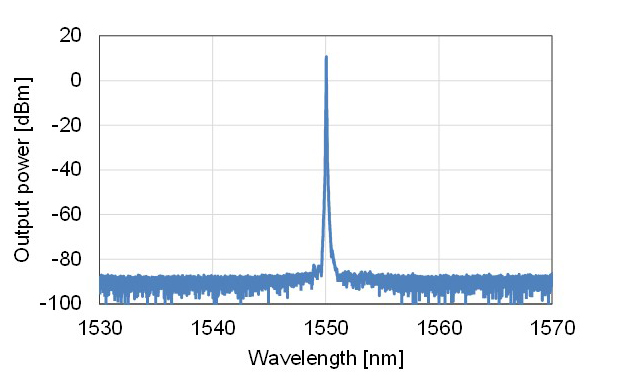

Optical Spectrum- High Output Power & High Signal-to-Noise Ratio -

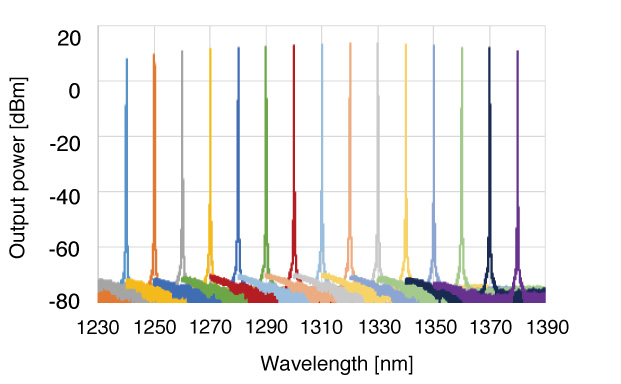

Wavelength vs. Output power- Wide Wavelength Range -

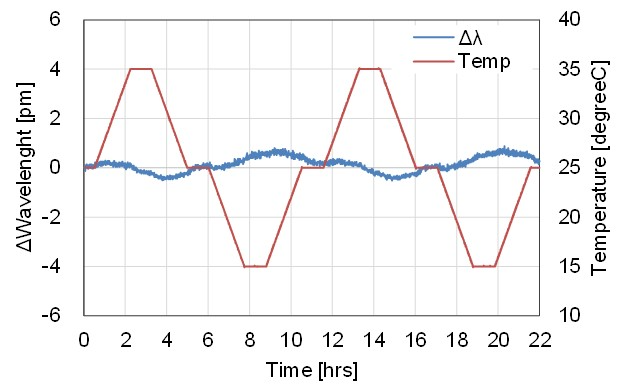

Wavelength accuracy
