LE-0600 Diode pumped Nd:YAG Laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Keywords:
Properties of Diode Laser
Optical Pumping
Rate Equation Model
Static and Dynamic Behaviour
Output Power
Optical Resonator
Stability Criterion
Laser Spiking
Basic / advanced experiment
Intended institutions and users:
Physics Laboratory
Engineering department
Electronic department
Biophotonics department
Physics education in Medicine
LE-0600 Diode pumped Nd:YAG Laser
Optical pumping in conjunction with Nd:YAG lasers is of particular interest, because these have become widely accepted for industrial use, along with the CO2 laser. The laser-active material which, in the case of the Nd:YAG laser, is excited by optical pumping, consists of Neodymium atoms that are accommodated in a transparent YAG host crystal (Yttrium Aluminium Garnet).
Whereas up to a few years ago Nd:YAG lasers were always excited using discharge lamps, optical pumping with laser diodes is becoming more and more significant. This is because laser
diodes are available economically and they emit narrow band light at high optical powers, which matches the energy levels of the Nd:YAG crystal. The advantage over the discharge lamp is that the emission of laser diodes is nearly completely absorbed by the Nd:YAG, whereas the very wide spectral emission of discharge lamps is absorbed to only a small extent only.
The four level system is explained, a theoretical analysis of the Nd:YAG laser is performed, and a rate equation model derived. The steady state solution is presented, and the dynamic situation considered to investigate spiking.

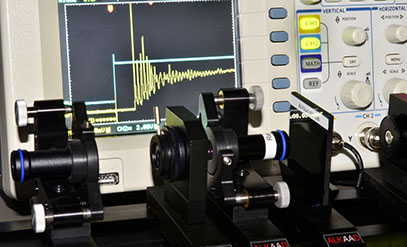

The kit contains all components necessary to assemble a diode pumped Nd:YAG laser - a 1 W diode with driver and Peltier controller, collimating and focusing optics, Nd:YAG crystal, laser mirrors, a photodiode detector and all necessary mounts etc.
The stability criterion of the resonator are verified experimentally. The dependence of the pump wavelength on diode temperature and drive current are proven, and the absorption spectrum of Nd:YAG derived. By using a few additional modules, this basic set-up can be up-graded to LE-0700 „Frequency Doubling with KTP“ or LE-0800 „Generation of short pulses“. Furthermore the components for the oscillation at 1.3 µm including frequency doubling to "red" or an active or passive Q-switch are available as options.
Datasheet
https://luhs.de/assets/le-0600.pdf
Manual
https://luhs.de/assets/um-le06.pdf
LE-0600 Diode pumped Nd:YAG Laser
Optical pumping in conjunction with Nd:YAG lasers is of particular interest, because these have become widely accepted for industrial use, along with the CO2 laser. The laser-active material which, in the case of the Nd:YAG laser, is excited by optical pumping, consists of Neodymium atoms that are accommodated in a transparent YAG host crystal (Yttrium Aluminium Garnet).
Whereas up to a few years ago Nd:YAG lasers were always excited using discharge lamps, optical pumping with laser diodes is becoming more and more significant. This is because laser
diodes are available economically and they emit narrow band light at high optical powers, which matches the energy levels of the Nd:YAG crystal. The advantage over the discharge lamp is that the emission of laser diodes is nearly completely absorbed by the Nd:YAG, whereas the very wide spectral emission of discharge lamps is absorbed to only a small extent only.
The four level system is explained, a theoretical analysis of the Nd:YAG laser is performed, and a rate equation model derived. The steady state solution is presented, and the dynamic situation considered to investigate spiking.

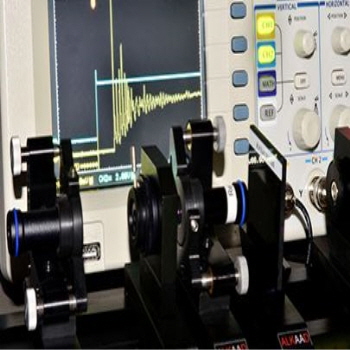

The kit contains all components necessary to assemble a diode pumped Nd:YAG laser - a 1 W diode with driver and Peltier controller, collimating and focusing optics, Nd:YAG crystal, laser mirrors, a photodiode detector and all necessary mounts etc.
The stability criterion of the resonator are verified experimentally. The dependence of the pump wavelength on diode temperature and drive current are proven, and the absorption spectrum of Nd:YAG derived. By using a few additional modules, this basic set-up can be up-graded to LE-0700 „Frequency Doubling with KTP“ or LE-0800 „Generation of short pulses“. Furthermore the components for the oscillation at 1.3 µm including frequency doubling to "red" or an active or passive Q-switch are available as options.
Datasheet
https://luhs.de/assets/le-0600.pdf
Manual
