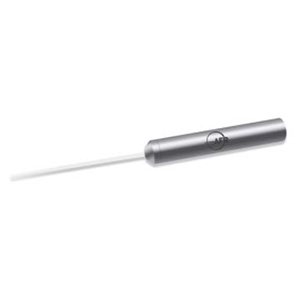

1310/1550nm Dual Fiber Collimator
⠀⠀⠀⠀⠀⠀⠀⠀⠀
the basic element for in-line fiber optics components
The fiber collimator is the basic element for in-line fiber optics components, such as isolator and DWDM. It has low insertion and high return loss. The unique processing and high quality AR coating also enable this collimator to handle high power.
Specifications |
| ||||
Parameter | Unit | Value | |||
Center Wavelength (λc) | nm | 1310, 1550 or specify | |||
Operating Wavelength Range | nm | λc ± 30 | |||
Working Type |
| Transmission Type | Transmission Type | Transmission Type | Reflection Type |
Working Distance | mm | 5-10 | 11-30 | 31-50 | 0mm for Glens, 2.4mm for Clens |
Typ. Insertion Loss @23℃ | dB | 0.20 | 0.25 | 0.30 | 0.20 |
Max. Insertion Loss @23℃ | dB | 0.25 | 0.35 | 0.40 | 0.25 |
Min. Return Loss @23℃ | dB | 55 | |||
Max. Optical Power | W | 0.3,0.5.…3 | |||
Max. Tensile Load | N | 5 | |||
Fiber Type |
| SMF-28 fiber | |||
Operating Temperature | ℃ | -5 to +70 | |||
Storage Temperature | ℃ | -40 to +85 | |||
Specifications |
| ||||
Parameter | Unit | Value | |||
Center Wavelength (λc) | nm | 1310, 1550 or specify | |||
Operating Wavelength Range | nm | λc ± 30 | |||
Working Type |
| Transmission Type | Transmission Type | Transmission Type | Reflection Type |
Working Distance | mm | 5-10 | 11-30 | 31-50 | 0mm for Glens, 2.4mm for Clens |
Typ. Insertion Loss @23℃ | dB | 0.20 | 0.25 | 0.30 | 0.20 |
Max. Insertion Loss @23℃ | dB | 0.25 | 0.35 | 0.40 | 0.25 |
Min. Return Loss @23℃ | dB | 55 | |||
Max. Optical Power | W | 0.3,0.5.…3 | |||
Max. Tensile Load | N | 5 | |||
Fiber Type |
| SMF-28 fiber | |||
Operating Temperature | ℃ | -5 to +70 | |||
Storage Temperature | ℃ | -40 to +85 | |||
