1310/1550 & 1480/1550nm Singlemode WDM
⠀⠀⠀⠀⠀⠀⠀⠀⠀
extensively used in EDFA, CATV, WDM networks and fiber optics instrumentation

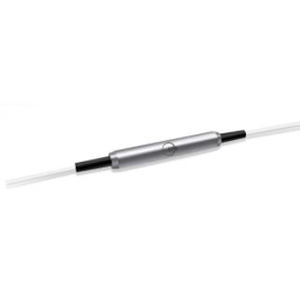

The Singlemode Wavelength Division Multiplexers combine or separate light at different wavelengths. They offer very low insertion loss, low polarization dependence, high isolation and excellent enviromental stability. These components have been extensively used in EDFA, CATV, WDM networks and fiber optics instrumentation.
Specifications | |||
Parameter | Unit | Value | |
Center Wavelength (λc) | nm | 1310/1550 | 1480/1550 |
Operation Wavelength | nm | λc ± 15 | λc ± 5 |
Min. Isolation | dB | 17 | 13 |
Max. Insertion Loss | dB | 0.20 | 0.35 |
Max. Polarization Dependent Loss | dB | 0.1 | 0.2 |
Thermal Stability | dB/℃ | ≤ 0.002 over -5 °C to +70 °C | |
Min. Return Loss | dB | 60 | |
Directivity | dB | 60 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Fiber Type |
| SMF-28 fiber | |
Package Dimensions | mm | 250 µm bare fiber, Φ3.0 × 40 mm for 1310/1550 | |
| (3.0 × 55 mm for 1480/1550) | ||
900 µm loose tube, Φ3.0 × 56 mm for 1310/1550 | |||
| (3.0 × 72 mm for 1480/1550) | ||
3 mm cable, 90 × 16 × 9 mm | |||
Operating Temperature | ℃ | -5 to +70 | |
Operating Temperature | ℃ | 40 to +85 | |
Specifications | |||
Parameter | Unit | Value | |
Center Wavelength (λc) | nm | 1310/1550 | 1480/1550 |
Operation Wavelength | nm | λc ± 15 | λc ± 5 |
Min. Isolation | dB | 17 | 13 |
Max. Insertion Loss | dB | 0.20 | 0.35 |
Max. Polarization Dependent Loss | dB | 0.1 | 0.2 |
Thermal Stability | dB/℃ | ≤ 0.002 over -5 °C to +70 °C | |
Min. Return Loss | dB | 60 | |
Directivity | dB | 60 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Fiber Type |
| SMF-28 fiber | |
Package Dimensions | mm | 250 µm bare fiber, Φ3.0 × 40 mm for 1310/1550 | |
| (3.0 × 55 mm for 1480/1550) | ||
900 µm loose tube, Φ3.0 × 56 mm for 1310/1550 | |||
| (3.0 × 72 mm for 1480/1550) | ||
3 mm cable, 90 × 16 × 9 mm | |||
Operating Temperature | ℃ | -5 to +70 | |
Operating Temperature | ℃ | 40 to +85 | |
