1530-1542nm C Band Red/Blue WDM

⠀⠀⠀⠀⠀⠀⠀⠀⠀

wide passband, low insertion loss, high return loss, excellent environmental stability and high power handling capability

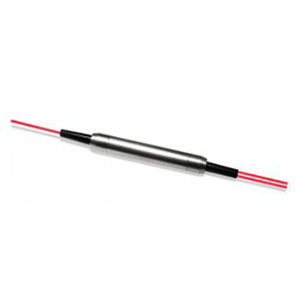

The C Band Red/Blue Filter Wavelength Division Multiplexer is a micro optics device based on environmentally stable thin film filter technology. It is used to separate or combine Red band wavelength signals and Blue band wavelength signals in C band range in DWDM systems. The components are characterized with wide passband, low insertion loss, high return loss, excellent environmental stability and high power handling capability.

Specifications
Parameter		Unit	Value
Pass Band	Wavelength Range	nm	1530 - 1542 (1548 - 1560)
	Max. Insertion Loss	dB	0.6
	Typ. Insertion Loss	dB	0.4
	Min. Isolation	dB	22
	Typ. Isolation	dB	25
Reflection Band	Wavelength Range	nm	1548 - 1560 (1530 - 1542)
	Max. Insertion Loss	dB	0.5
	Typ. Insertion Loss	dB	0.3
	Min. Isolation	dB	12
	Typ. Isolation	dB	14
Min. Return Loss		dB	50
Max. Polarization Dependent Loss		dB	0.10
Typ. Polarization Dependent Loss		dB	0.05
Thermal Stability		dB/℃	0.005
Max. Optical Power (Continuous Wave)		mW	300
Max. Tensile Load		N	5
Fiber Type			SMF-28 fiber
Operating Temperature		℃	-5 to +70
Storage Temperature		℃	-40 to +85

Specifications
Parameter		Unit	Value
Pass Band	Wavelength Range	nm	1530 - 1542 (1548 - 1560)
	Max. Insertion Loss	dB	0.6
	Typ. Insertion Loss	dB	0.4
	Min. Isolation	dB	22
	Typ. Isolation	dB	25
Reflection Band	Wavelength Range	nm	1548 - 1560 (1530 - 1542)
	Max. Insertion Loss	dB	0.5
	Typ. Insertion Loss	dB	0.3
	Min. Isolation	dB	12
	Typ. Isolation	dB	14
Min. Return Loss		dB	50
Max. Polarization Dependent Loss		dB	0.10
Typ. Polarization Dependent Loss		dB	0.05
Thermal Stability		dB/℃	0.005
Max. Optical Power (Continuous Wave)		mW	300
Max. Tensile Load		N	5
Fiber Type			SMF-28 fiber
Operating Temperature		℃	-5 to +70
Storage Temperature		℃	-40 to +85
