High Power Thermal Sensors and Power Pucks – 1W to 120kW
⠀⠀⠀⠀⠀⠀⠀⠀⠀
These sensors for high power industrial lasers have the highest power measurement capability in the market – up to 120 kW. Ophir meters also have the highest damage thresholds available, up to 10 kW/cm² at full power.

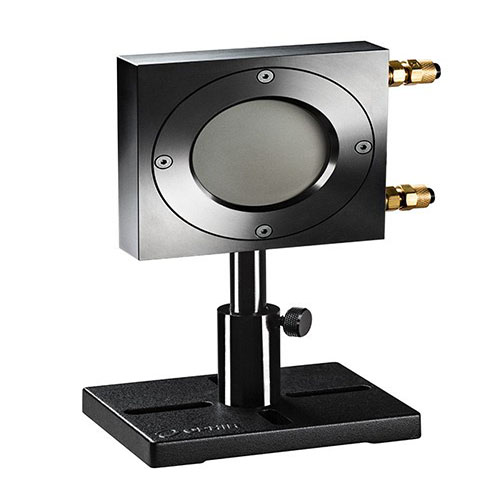

L250W-BB-50
7Z07125- Ø50mm
- 0.19-11µm
- 1W-250W
- 120mJ-200J
- N.A.
- 90 L x 90 W x 20 D (mm)
L300W-LP2-50
7Z02776- Ø50mm
- 0.35-2.2µm, 10.6µm
- 0.5W-300W
- 200mJ-300J
- N.A.
- 90 L x 90 W x 20 D (mm)
1000W-BB-34
7Z02750- Ø34mm
- 0.19-20µm
- 5W-1000W
- 400mJ-300J
- N.A.
- Ø100 W x 35 D (mm)
1000W-BB-34-QUAD
7Z07936- Ø34mm
- 0.19-20µm
- 5W-1000W
- 500mJ-300J
- N.A.
- Ø100 W x 35 D (mm)
1000W-LP2-34
7Z02774- Ø34mm
- 0.35-2.2µm
- 5W-1000W
- 400mJ-300J
- N.A.
- Ø100 W x 35 D (mm)
1000WP-BB-34
7Z02753- Ø34mm
- 0.19-20µm
- 5W-1000W
- 400mJ-300J
- N.A.
- Ø115 W x 36 D (mm)
L1500W-BB-50
7Z02752- Ø50mm
- 0.19-20µm
- 15W-1500W
- 500mJ-200J
- N.A.
- Ø120 W x 36 D (mm)
L1500W-LP2-50
7Z02772- Ø50mm
- 0.35-2.2µm
- 15W-1500W
- 500mJ-200J
- N.A.
- Ø120 W x 36 D (mm)
L2000W-BB-120
7Z02751- Ø120mm
- 0.19-20µm
- 1W-2000W
- 6J-6000J
- N.A.
- Ø220 W x 42 D (mm)
L2000W-PF-120
7Z02792- Ø120mm
- 0.3-2.2µm
- 1W-2000W
- 6J-6000J
- N.A.
- Ø220 W x 42 D (mm)
5000W-BB-50
7Z02754- Ø50mm
- 0.19-20µm
- 20W-5000W
- N.A.
- N.A.
- Ø146 W x 47 D (mm)
5000W-LP2-50
7Z02773- Ø50mm
- 0.35-2.2µm
- 20W-5000W
- N.A.
- N.A.
- Ø146 W x 47D (mm)
5000WP-LP2-50
7Z02788- Ø50mm
- 0.35-2.2µm
- 20W-5000W
- N.A.
- N.A.
- Ø155 W x 52 D (mm)
6K-W-BB-200x200
7Z02764- 198 x 198 mm
- 0.19-20µm
- 200W-6000W
- N.A.
- N.A.
- 200 L x 200 W x 61 D (mm)
Helios-Profinet
7Z02768- Ø50mm
- 860-1100nm
- 50W-12kW
- 100J – 5kJ
- N.A.
- 200 Lx123 Wx144 H (mm) - Open, 200 L x 100 W x 84 H(mm)-Closed
Helios-EtherNet/IP
7Z02789- Ø50mm
- 860-1100nm
- 50W-12kW
- 100J – 5kJ
- N.A.
- 200 Lx123 Wx144 H (mm) - Open, 200 L x 100 W x 84 H(mm)-Closed
IPM-10KW
- Ø45mm
- 0.9-1.1µm, 10.6µm
- 100W-11,000W
- N.A.
- ~3.5% without IPM-Shutter10, ~1% with IPM-Shutter10
- Ø179 W x 70 D (mm)
10K-W-BB-45
7Z02756- Ø45mm
- 0.8-2µm, 10.6µm
- 100W-11,000W
- N.A.
- ~3.5% without Scatter Shield, ~1% with Scatter Shield ~
- Ø146 W x 70 D (mm)
15K-W-BB-45
7Z02770- Ø45mm
- 0.8-2µm, 10.6µm
- 100W-15,000W
- N.A.
- ~3.5% without Scatter Shield, ~1% with Scatter Shield
- Ø146 W x 82 D (mm)
16K-W-BB-55
7Z02791- Ø55mm
- 0.8-2µm, 10.6µm
- 100W-16,000W
- N.A.
- ~3.5% without Scatter Shield, ~1% with Scatter Shield
- Ø170 W x 82 D (mm)
30K-W-BB-74
7Z02757- Ø74mm
- 0.8-2µm, 10.6µm
- 100W-30,000W
- N.A.
- ~4.3% without Scatter Shield, ~1.3% with Scatter Shield
- Ø229 W x 100 D (mm)
120K-W
7Z02691- Ø200mm
- 0.9-1.1µm
- 10kW - 120kW
- N.A.
- Less than 1%
- 520 L x 545 W x 750 D (mm)
Comet 1K
7Z02702- Ø50mm
- 0.2-20µm
- 20W-1000W
- N.A.
- N.A.
- 295 L x 25 W x 50 D (mm)
Comet 10K
7Z02705- Ø100mm
- 0.98-1.07µm and 10.6µm
- 200W-10,000W
- N.A.
- N.A.
- 345 L x 50 W x 100 D (mm)
Comet 10K-HD
7Z02706- Ø55mm
- 0.98-1.07µm and 10.6µm
- 200W-10,000W
- N.A.
- N.A.
- 355 L x 87 W x 110 D (mm)
