L40(250)A-BB-50
7Z02793- Ø50mm
- 0.19-20µm
- 300mW-250W
- 100mJ-4000J
- 90 L x 90 W x 33 D (mm)

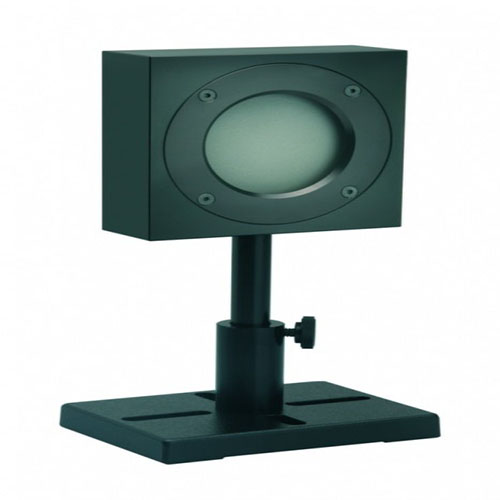

Medium Power Thermal Sensors – 100mW to 300W
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Apertures from 50 to 65 mm. Sensors for larger beams and higher powers. Compact sensors for intermittent use.
L40(250)A-LP2-50
7Z02794- Ø50mm
- 0.25-2.2µm, 2.94 µm
- 300mW-250W
- 100mJ-10,000J
- 90 L x 90 W x 33 D (mm)
L40(500)A-LP2-DIF-35
7Z02797- Ø35mm
- 0.44-2.2µm
- 300mW-500W
- 100mJ-2,000J
- 90 L x 90 W x 45 D (mm)
L40(200)A-EX-50
7Z02795- Ø50mm
- 0.15-0.7µm, 10.6µm
- 300mW-200W
- 100mJ-200J
- 90 L x 90 W x 33 D (mm)
L40(150)A-IPL
7Z02771- 22x22mm
- 0.5-1.3µm
- N.A.
- 100mJ-2,000J
- 90 L x 90 W x 62 D (mm)
L50(250)A-BB-50
7Z02796- Ø50mm
- 0.19-20µm
- 300mW-250W
- 100mJ-4000J
- 100 L x 100 W x 39 D (mm)
L50(300)A
7Z02658- Ø65mm
- 0.19-20µm
- 400mW-300W
- 200mJ-300J
- 120 L x 120 W x 30 D (mm)
L50(300)A-LP2-65
7Z02782- Ø65mm
- 0.25-2.2µm
- 400mW-300W
- 200mJ - 1000J
- 120 L x 120 W x 30 D (mm)
L50(300)A-PF-65
7Z02743- Ø65mm
- 0.15-20µm
- 400mW-300W
- 200mJ-300J
- 120 L x 120 W x 30 D (mm)
L50(300)A-IPL
7Z02780- Ø65mm
- 0.5-1.3µm
- 400mW-300W
- 120mJ-1,000J
- 120 L x 120 W x 30 D (mm)
