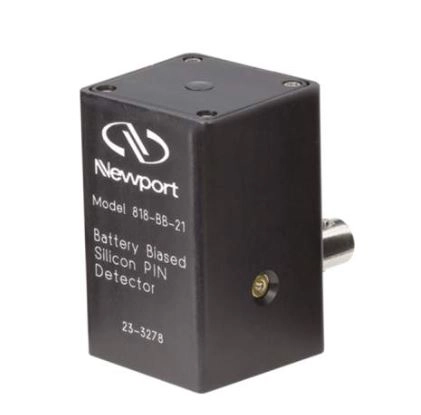

HIGH-SPEED PHOTODETECTOR MODEL 818-BB-21A

HIGH-SPEED PHOTODETECTOR   MODEL  818-BB-21A

- Wavelength Range : 300~1100nm

- Rise Time : 500psec- 3dB Bandwidth : 30kHz ~ 1.2GHz

- Peak Responsivity : 0.4A/W at 830nm

- Maximum Conversion Gain : 450V/W at 830nm

- Output Connector : BNC

- Bias Voltage : 24V (Includes AC Power Supply)

- Output Impedance : 50ohm
