AFR-P/N: MMPC-2 + 1×1-06-976-22-SS-SS-S-2, Rev11, signal input

P/N: MMPC-2 + 1×1-06-976-22-SS-SS-S-2, Rev11, signal input

LMA-GDF-10/125-M, output LMA-YDF-10/125-9M,output fiber

3.5m, others 1.5m

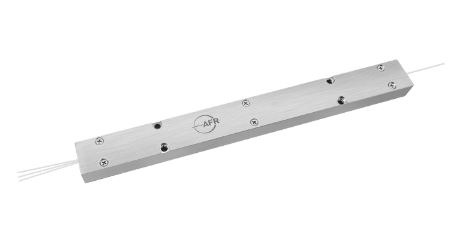

Activer combiner- Port type: (2+1)x1, Forward

- Pump wavelength/power: 976nm

- Signal wavelength: 1064nm- Pump fiber: Nufern

- MM-S105/125-0.22NA

- Input Signal fiber: LMA-GDF-10/125-M

- Output signal fiber: LMA-YDF-10/125-9M

- P2: 70 (L) × 12 (W) × 8 (H)mm

- 2x10W max. input pump power

- Fiber length: output fiber 3.5m,others 1.5m

notes: insertion loss and pump efficiency will not be tested
