AFR-P/N: MMPC-1 + 1×1-06-976-22-SS-SS-S-1, Rev11, signal input

P/N: MMPC-1 + 1×1-06-976-22-SS-SS-S-1, Rev11, signal input

HI1060, output LMA-YDF-10/125-09- M,output fiber 3.5m,others

1.5m

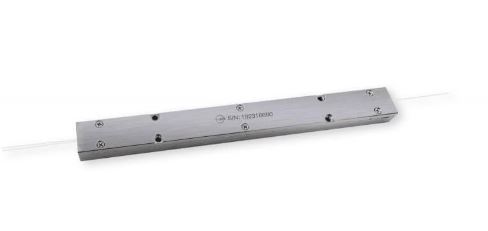

Activer combiner

- Port type: (1+1)x1, Forward

- Pump wavelength/power: 976nm

- Signal wavelength: 1064nm

- Pump fiber: Nufern-MM-S105/125-0.22NA

- Input Signal Fiber: HI1060

- output Signal Fiber: LMA-YDF-10/125-9-M

- P1: P1: 50 (L) × 5 (W) × 5 (H)mm

- 1x10W max. input pump power

- Fiber length: output fiber 3.5m,others 1.5m

notes: insertion loss and pump efficiency will not be tested
