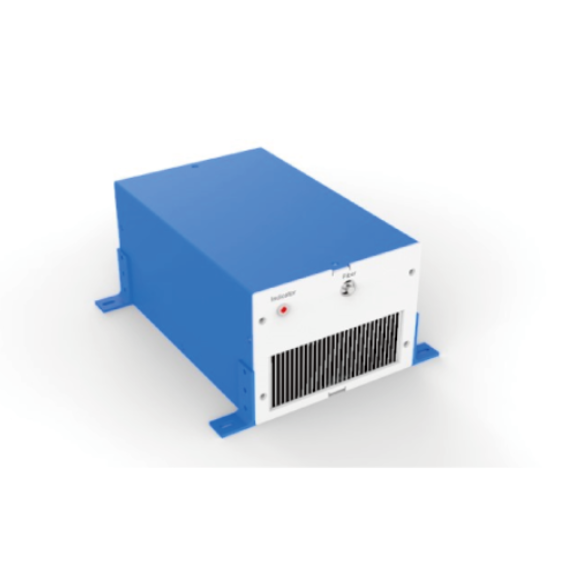

Mini Series Pluggable Diode Laser Subsystem 50W

Pluggable design greatly facilitates user maintenance, avoids various troubles and high time costs caused by return-to-factory maintenance, and facilitates unified power management through DC input, which can be remotely controlled through RS232 serial port

Main features：

• Optical fiber numerical aperture : 0.22NA
• Fiber core diameter : 200μm
• Pluggable fiber
• Output power : 50W
• wavelength : 976/915/808nm

Application：

• Scientific Research
• Solid-state laser pump source
• Fiber laser pump source
• Laser additive reproduction
• Cladding
• Welding
• Cutting
