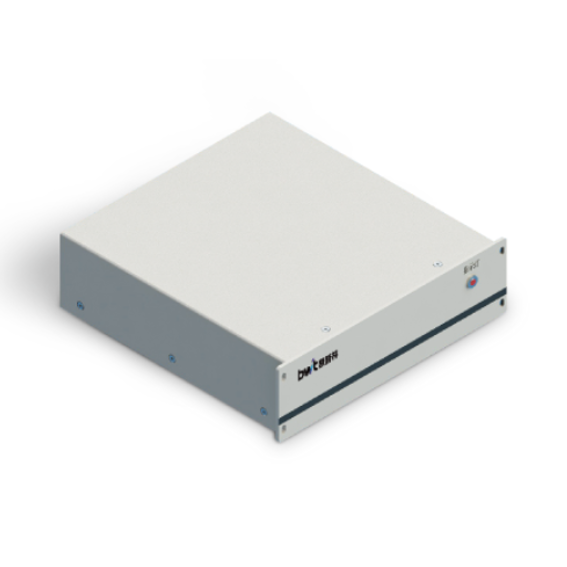

BWT 405nm Fiber Coupled Diode Laser Subsystem 50W

405 semiconductor laser subsystem can provide power output from 12W to 50W, widely used in LDI/maskless lithography and other applications;

The system is fully designed as a 400um pluggable fiber, which is easy for user maintenance;

The use of spot homogenization scheme can be more suitable for LDI applications.

Main features：

• Optical fiber numerical aperture : 0.22NA
• Fiber core diameter : 400μm
• Output power : 50W
• Wavelength : 405nm

Application：

• LDI
• Cladding
• Welding
