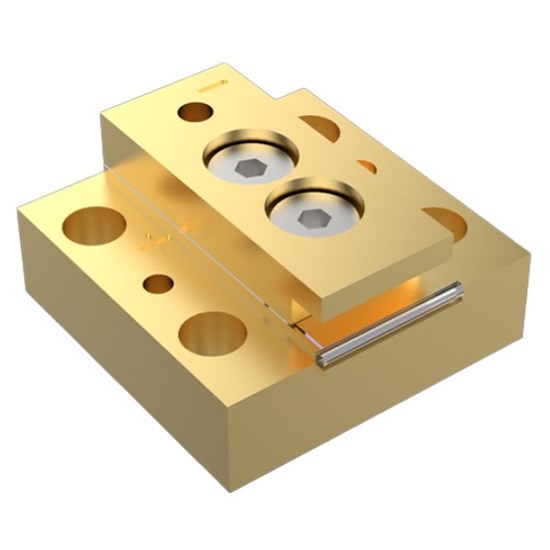

BWT Conduction Cooled Single Bar Product

1. According to customer needs, indium solder or gold tin solder packaging technology can be used. The product has the advantages of high reliability, long life, high photoelectric conversion efficiency, high stability, high beam quality, low smile and narrow line width.

2. The product has the characteristics of wide coverage of wavelength and power range, wavelength from 780nm to 1060nm, power coverage from watt level to continuous 100W.

3. Customers can choose fast and slow axis collimation, VBG lock wavelength, BTS beam conversion etc. The product has the advantages of low divergence angle and high spot pointing.

Main features：

• Low Smile
• Optional BTS
• Conduction cooled
• Long life time

Application：

• Scientific Research
