1470nm-15W Fiber Coupled Diod laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀

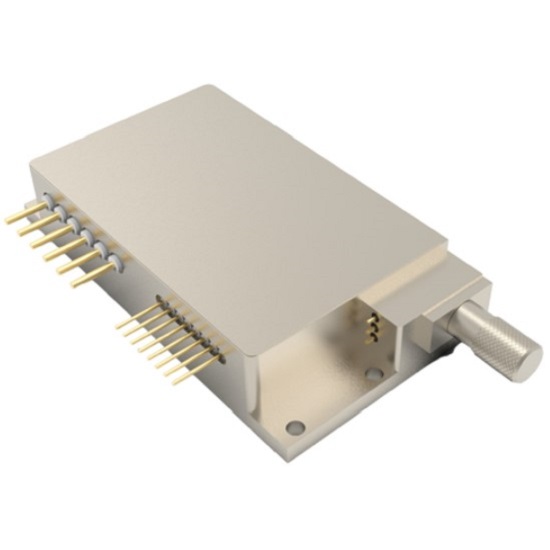

BWT 1470nm-15W Fiber Coupled Diod laser
This type of diode laser is used in fiber laser pump source applications.
Based on a variety of coupling technology solutions and thermal management, the products can meet the power, brightness, wavelength control, power-to-weight ratio, and other special requirements of different customers.
The wavelength range of the product covers a variety of pumping bands required by fiber lasers, and the optional power range is wide.

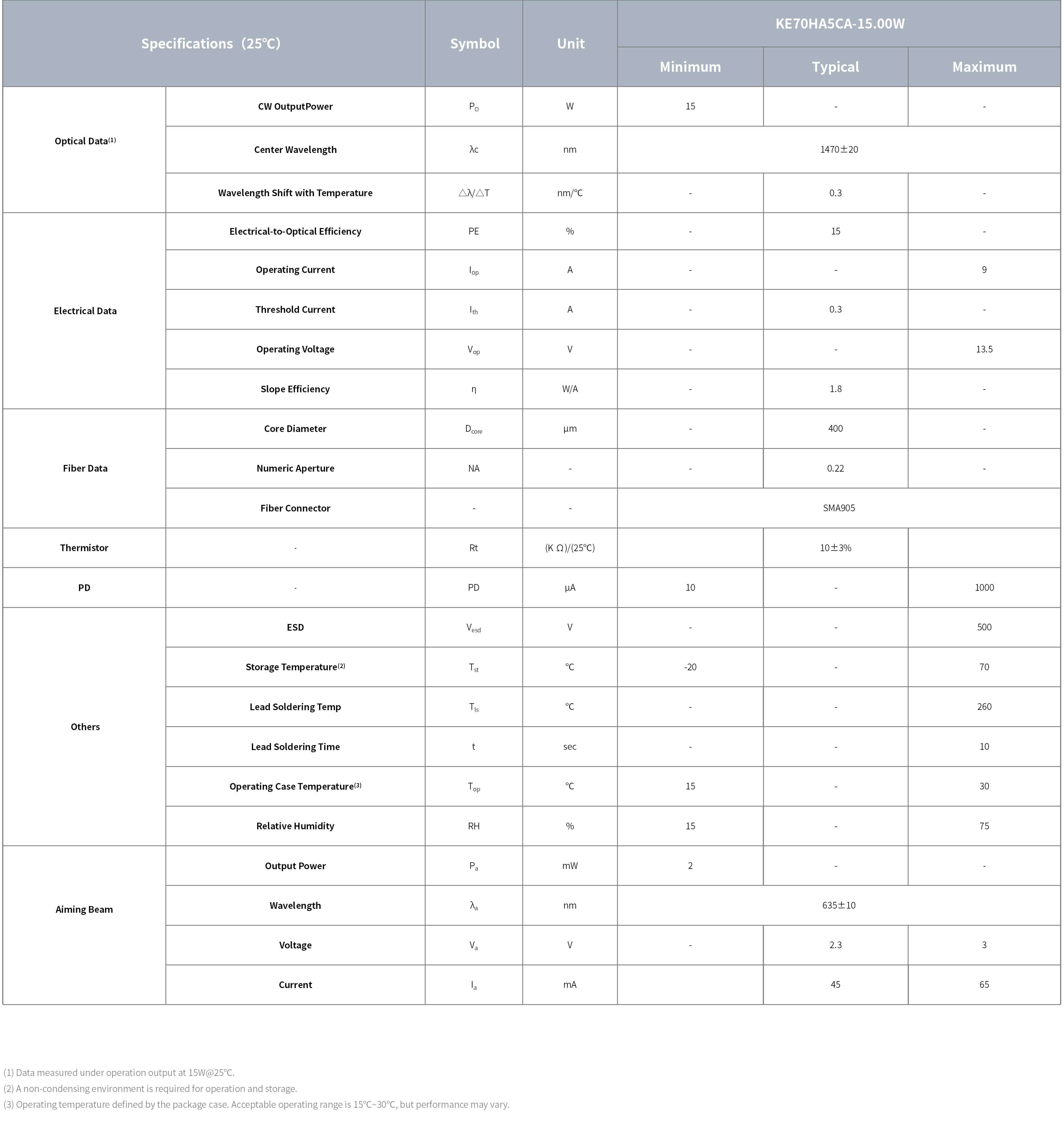

Main features：
- Wavelength : 1470nm
- Output power : 15W
- Fiber core diameter : 400μm
- Optical fiber numerical aperture : 0.22 NA
Application：
- Cosmetology
- Physiotherapy
- Surgery
- Dentistry

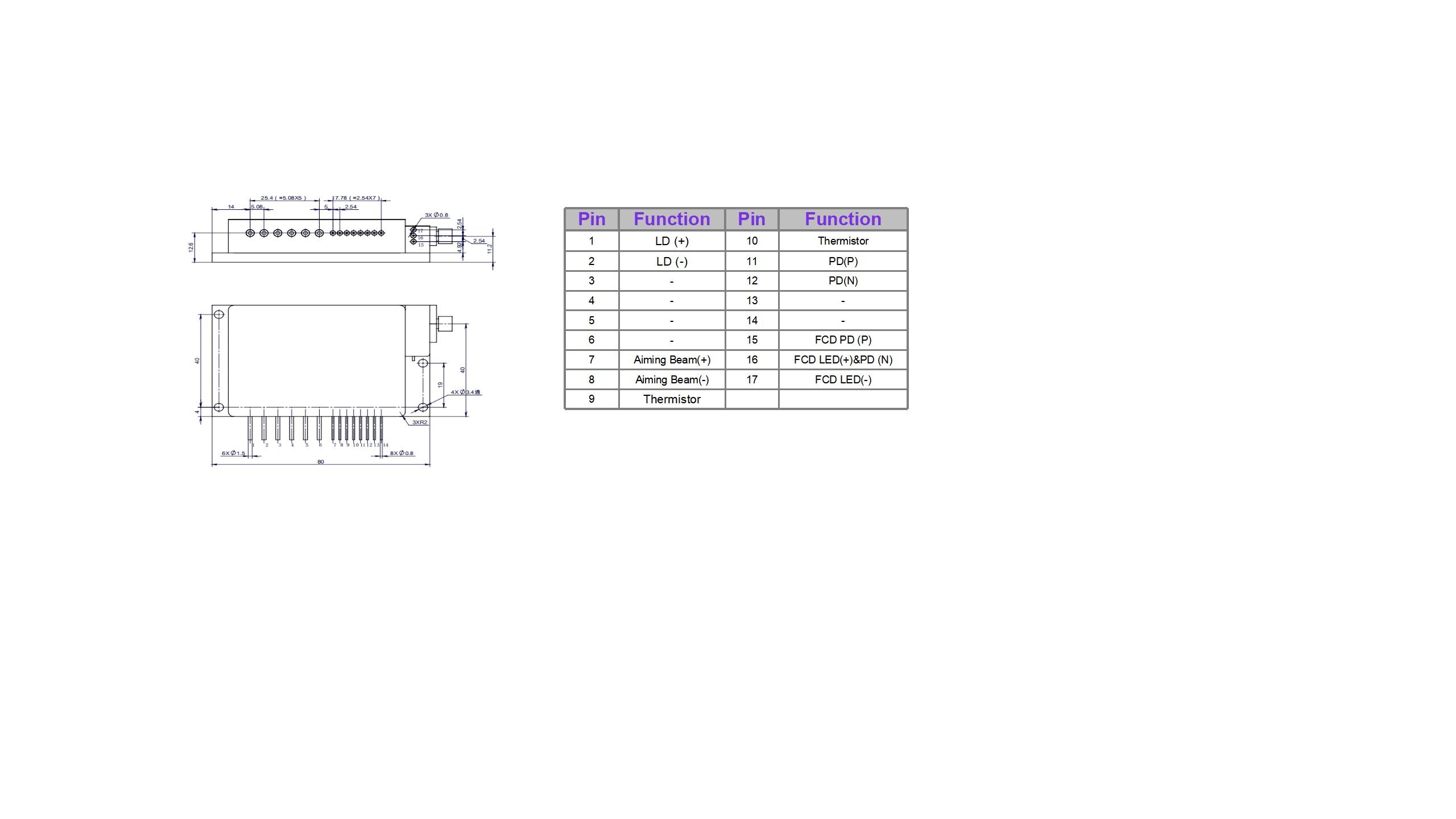

Structure Size (mm)
Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
- Soldering point should be close to the middle of the pins.
- Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 15℃ to 30℃ .
- Storage temperature ranges from -20℃ to +70℃.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
- Soldering point should be close to the middle of the pins.
- Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 15℃ to 30℃ .
- Storage temperature ranges from -20℃ to +70℃.
