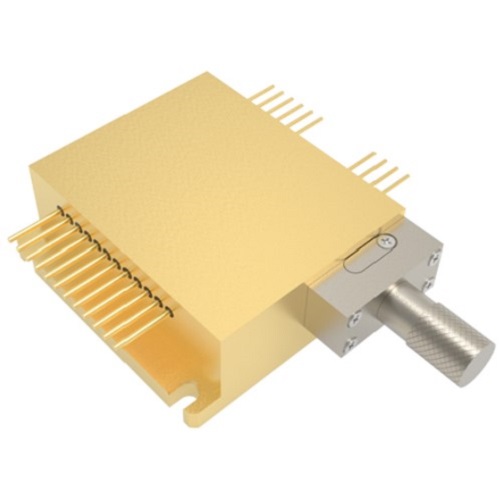

1064nm-20W Fiber Coupled Diod laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
BWT 1064nm-20W Fiber Coupled Diod laser
This series of medical diode laser systems has high integration, complete functions, and diversified choices.
The optical fiber realizes the pluggable design, which is very suitable for OEM integrated medical equipment.

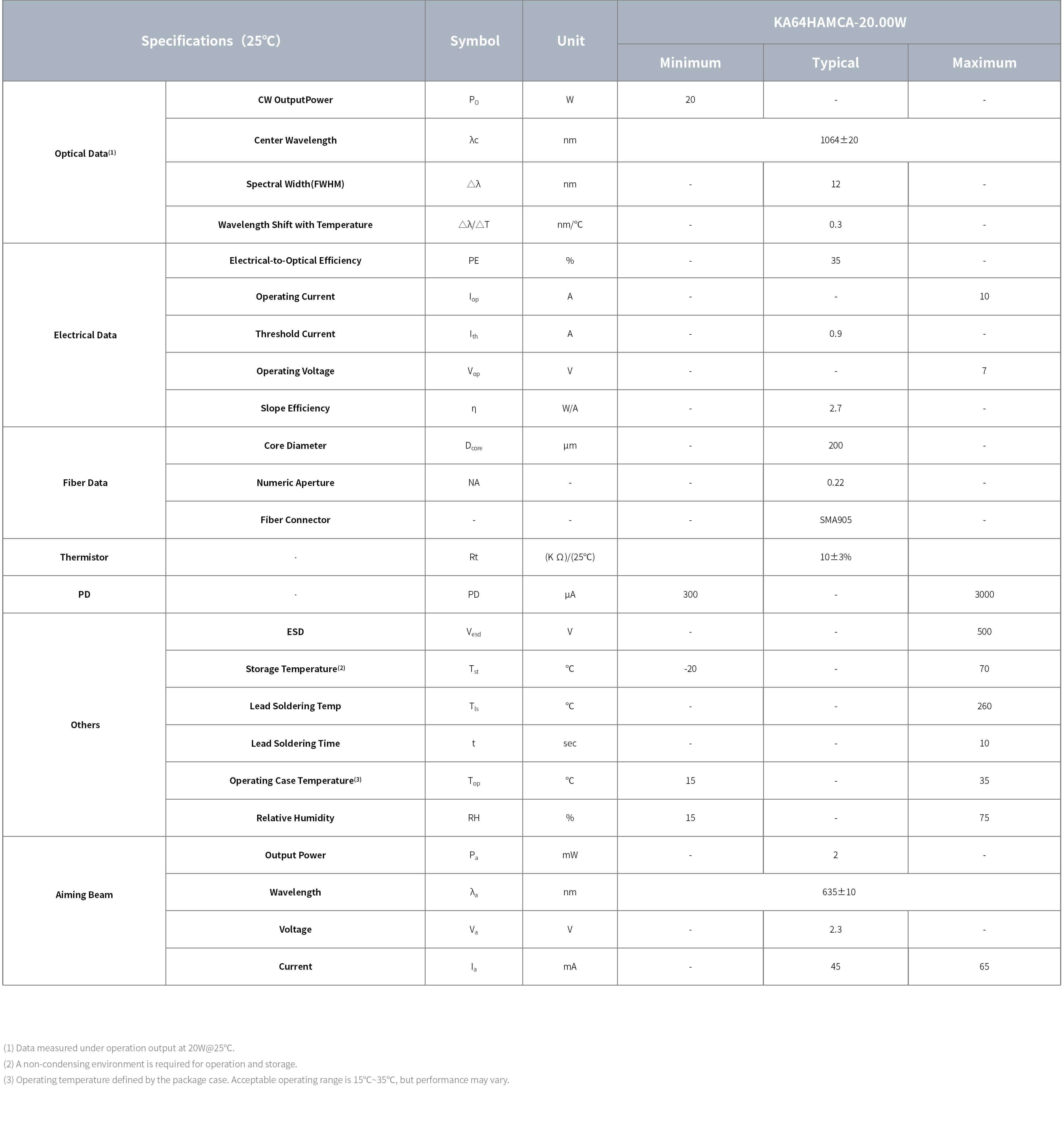

Main features：
- Wavelength : 1064nm
- Output power : 20W
- Fiber core diameter : 200μm
- Optical fiber numerical aperture :0.22 NA
Application：
- Cosmetology
- Physiotherapy
- Surgery
- Dentistry

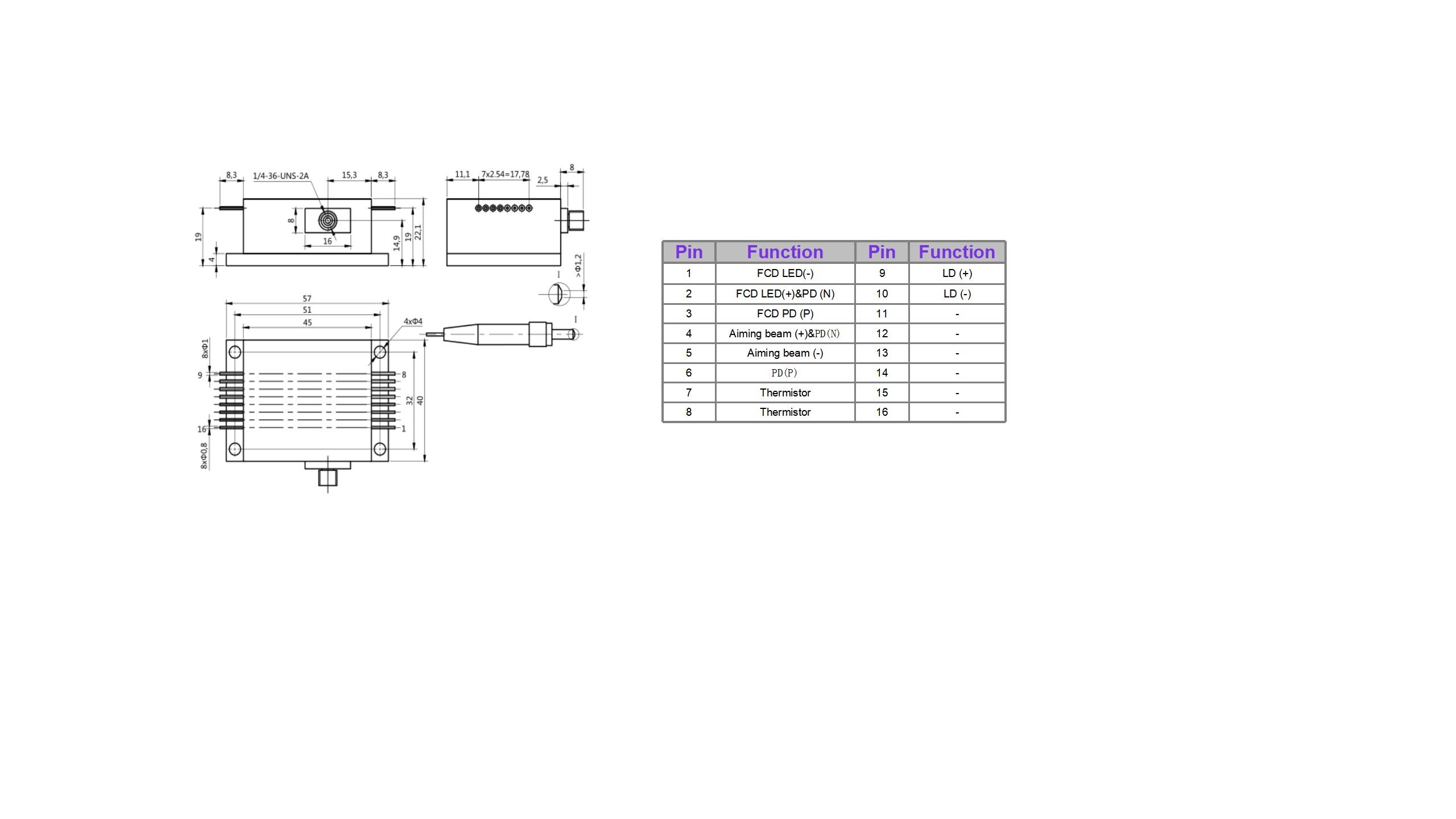

Structure Size (mm)
Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
- Soldering point should be close to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 15℃ to 35℃.
- Storage temperature ranges from -20℃ to +70℃.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
- Soldering point should be close to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 15℃ to 35℃.
- Storage temperature ranges from -20℃ to +70℃.
