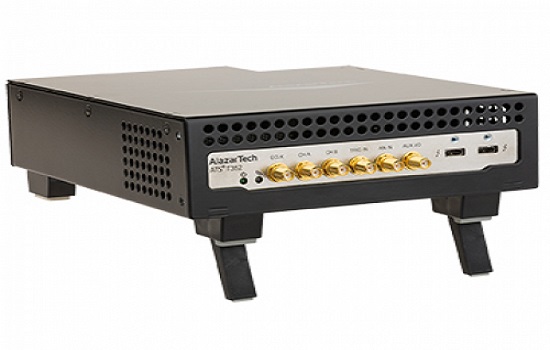

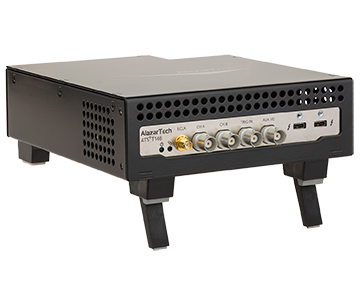

ATST146 - 14 bit, 125 MS/s, 2ch
ATST146 is a 2-channel, 14-bit, 125 MS/s Thunderbolt 3 waveform digitizer capable of storing up to 128 Million samples per channel
of acquired data in its on-board memory or streaming acquired data to motherboard memory. ATST146 is an ideal solution for many applications.
Any code developed for the AlazarTech ATS®9146 can be ported seamlessly to ATST146.
ATST146 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
Features:
- Thunderbolt™ 3 (USB type C) interface to the host computer -- No embedded PC required!
- 125 MS/s Real Time Sampling per channel
- 2 channels sampled simultaneously
- 14 bit A/D resolution
- Up to 128 Million samples of on-board acquisition memory per channel
- Thunderbolt 4 compatible
- Continuous Streaming Mode
- External clock from 125 MHz to 1 MHz
- Up to 65 MHz full power bandwidth
- ±20 mV to ±10 V Input Range
- NIST- or CNRC-Traceable Calibration
- Trigger Input & Auxiliary I/O connectors
- Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness
- OEM version without enclosure available for integration into your product
- AlazarDSO Software allows quick start-up
- SDK for C++/C#, Python, MATLAB, and LabVIEW
- Support for Windows, Linux, and macOS
