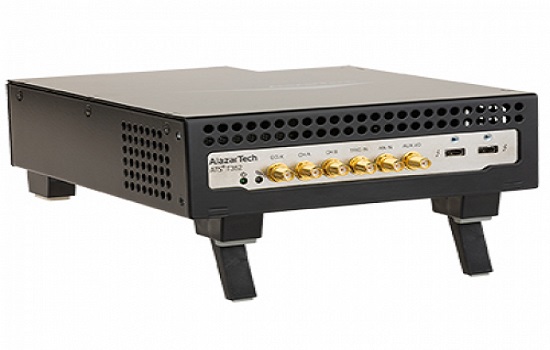

ATST352 - 12 bit, 500 MS/s
ATST352 is a 12-bit Thunderbolt 3-based waveform digitizer that can sample two analog inputs at rates up to 500 MS/s.
With Thunderbolt 3 connectivity and data throughput as fast as 1.6 GB/s (1600 MB/s),
ATST352 is an ideal solution for many applications, including OCT, radar, ultrasonics, spectrometry, and RF signal recording.
Any code developed for the AlazarTech ATS®9352 can be ported seamlessly to ATST352.
ATST352 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
Features:
- Thunderbolt™ 3 (USB type C) interface to the host computer -- No embedded PC required!
- 500 MS/s Real Time Sampling per channel
- 2 channels sampled at 12 bit resolution
- 1.6 GB/s throughput across Thunderbolt 3 connection
- Thunderbolt 4 compatible
- Up to 250 MHz full power bandwidth
- Variable Input Range from ±100 mV to ±4 V
- NIST- and CNRC-Traceable Calibration
- Continuous Streaming Mode
- 256 Megasamples of Dual-Port Memory per channel
- Trigger Input & Trigger Output connectors
- Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness
- OEM version without enclosure available for integration into your product
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows, Linux, and macOS
