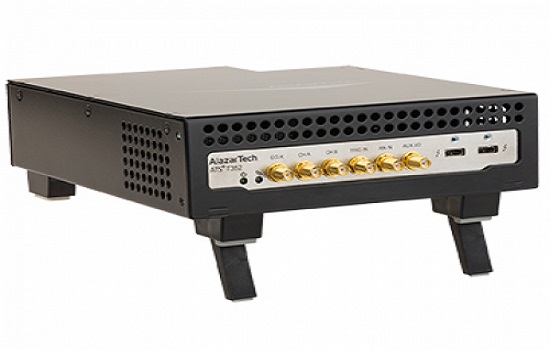

ATST364 - 12 bit, 1 GS/s
ATST364 is a low-noise, 12-bit Thunderbolt 3 waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.
With Thunderbolt 3 connectivity and data throughput as fast as 2.6 GB/s (2600 MB/s),
ATST364 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
Any code developed for the AlazarTech ATS®9364 can be ported seamlessly to ATST364.
ATST364 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
Features:
- Thunderbolt™ 3 (USB type C) interface to the host computer -- No embedded PC required!
- 1 GS/s Real Time Sampling rate
- 2 channels sampled at 12 bit resolution
- 2.6 GB/s throughput across Thunderbolt 3
- Thunderbolt 4 compatible
- 512 Megabytes of on-board Dual-Port Memory per channel
- Variable frequency external clock capable
- Fixed ±400 mV Input Range
- High Signal to Noise Ratio
- Continuous Streaming Mode
- Trigger Input & Trigger Output connectors
- Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, MATLAB, Python and LabVIEW
- Support for Windows, Linux, and macOS
