PCI Express Digitizers - 16bit
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Alazar Tech 16bit PCI Express Digitizers
ATS9462 / ATS9628

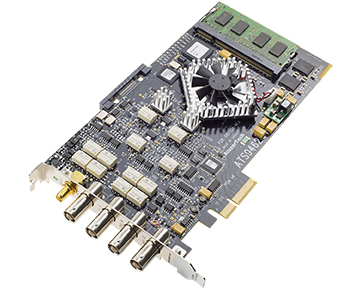

ATS9462 - 16 bit, 180 MS/s
ATS9462 was the world's first waveform digitizer with a 4-lane PCI Express interface.
Boasting data throughput as fast as 720 MB/s and sample rate of 180 MS/s across 2 simultaneous inputs,
ATS9462 is an ideal solution for many applications, including OCT, RF signal capture, ultrasonic inspection, and radar.
Features:
- 250 MS/s 16-bit A/D sampling per channel
- DC-coupled input amplifier
- 1.6 GB/s throughput across PCIe Gen2 x4 bus
- 2 channels sampled at 16 bit resolution
- DC ~ 120 MHz full power bandwidth
- ±1.25 V fixed input range
- 69 dB Signal to Noise Ratio
- NIST traceable calibration
- Continuous Streaming Mode
- 256 Megasamples of on-board Dual-Port Memory
- Trigger Input & Auxiliary I/O connectors
- Half-Length PCIe x4 Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux

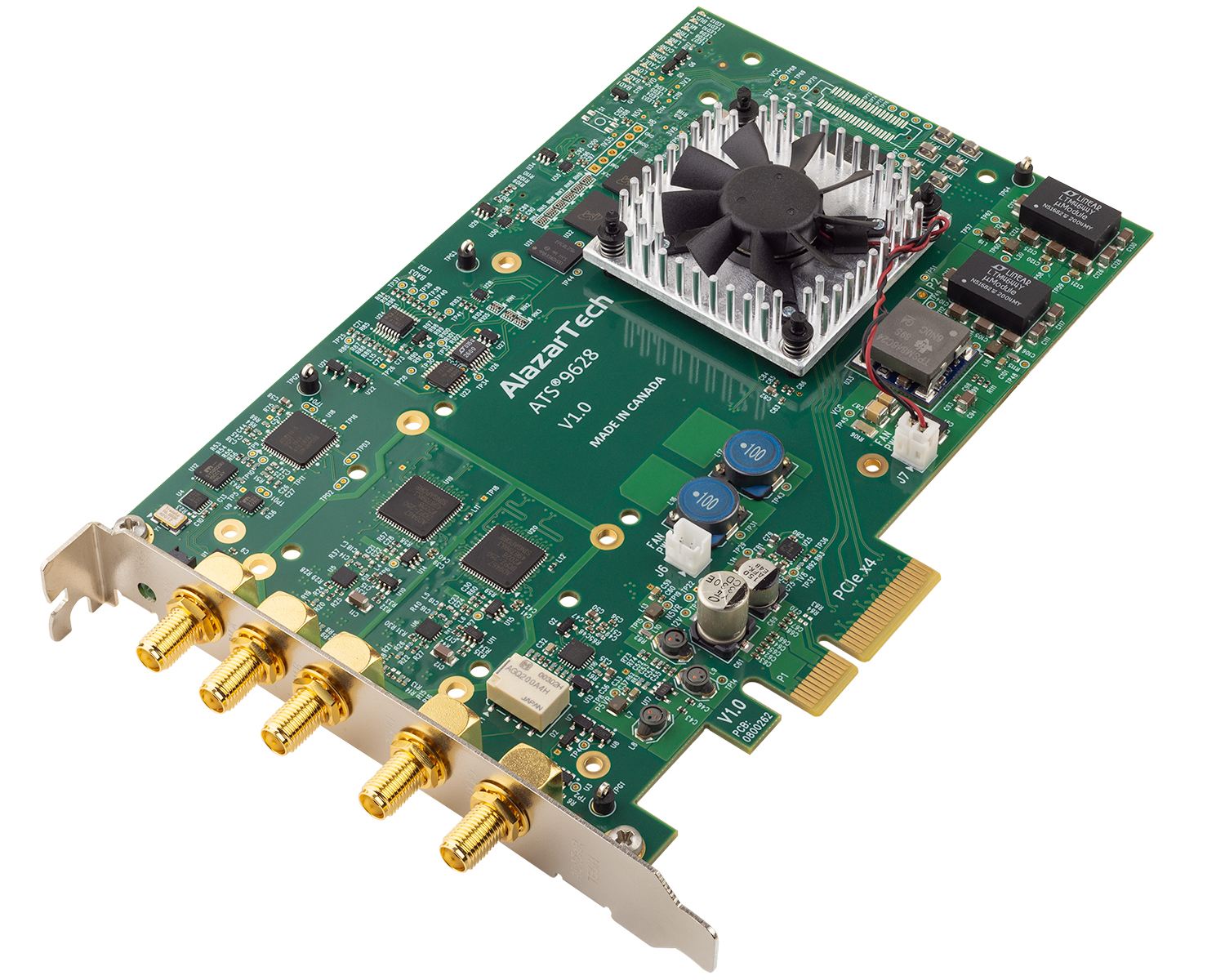

ATS9628 - 16 bit, 250 MS/s DC
ATS9628 is a 250 MS/s 16-bit PCI Express waveform digitizer.
With fixed dc-coupled input range of ±1.25 V and signal to noise ratio of 69 dB,
ATS9628 is an ideal solution for applications that require high dynamic range with dc coupling.
ATS9628 is a four-lane PCI Express (PCIe x4) Gen 2 card, which supports up to 1.6 GB/s bus throughput.
Features:
- 180 MS/s Real Time Sampling per channel
- Up to 512 Megasamples of on-board acquisition memory
- 720 MB/s data throughput to PC memory
- 2 Channels sampled at 16 bit resolution
- 65 MHz full power bandwidth
- ±200 mV to ±16 V Input Range
- 73.9 dB Signal to Noise Ratio
- NIST Traceable Calibration
- Continuous Streaming Mode
- Trigger Input & Trigger Output connectors
- ¾-Length PCIe x4 Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux

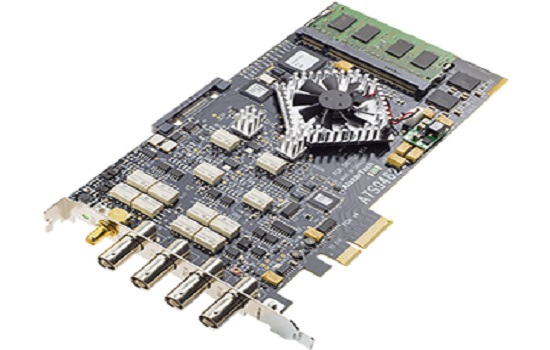

ATS9462 - 16 bit, 180 MS/s
ATS9462 was the world's first waveform digitizer with a 4-lane PCI Express interface.
Boasting data throughput as fast as 720 MB/s and sample rate of 180 MS/s across 2 simultaneous inputs,
ATS9462 is an ideal solution for many applications, including OCT, RF signal capture, ultrasonic inspection, and radar.
Features:
- 250 MS/s 16-bit A/D sampling per channel
- DC-coupled input amplifier
- 1.6 GB/s throughput across PCIe Gen2 x4 bus
- 2 channels sampled at 16 bit resolution
- DC ~ 120 MHz full power bandwidth
- ±1.25 V fixed input range
- 69 dB Signal to Noise Ratio
- NIST traceable calibration
- Continuous Streaming Mode
- 256 Megasamples of on-board Dual-Port Memory
- Trigger Input & Auxiliary I/O connectors
- Half-Length PCIe x4 Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux
ATS9628 - 16 bit, 250 MS/s DC
ATS9628 is a 250 MS/s 16-bit PCI Express waveform digitizer.
With fixed dc-coupled input range of ±1.25 V and signal to noise ratio of 69 dB,
ATS9628 is an ideal solution for applications that require high dynamic range with dc coupling.
ATS9628 is a four-lane PCI Express (PCIe x4) Gen 2 card, which supports up to 1.6 GB/s bus throughput.
Features:
- 180 MS/s Real Time Sampling per channel
- Up to 512 Megasamples of on-board acquisition memory
- 720 MB/s data throughput to PC memory
- 2 Channels sampled at 16 bit resolution
- 65 MHz full power bandwidth
- ±200 mV to ±16 V Input Range
- 73.9 dB Signal to Noise Ratio
- NIST Traceable Calibration
- Continuous Streaming Mode
- Trigger Input & Trigger Output connectors
- ¾-Length PCIe x4 Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux
