PCI Express Digitizers - 12 bit, 12-50 MS/s, 2ch
⠀⠀⠀⠀⠀⠀⠀⠀⠀
PCI Express Digitizers
ATS9130 - 12 bit, 50 MS/s, 2ch
ATS9120 - 12 bit, 20 MS/s, 2ch
2-channel, 12-bit, 50 MS/s and 20 MS/s waveform digitizer
capable of storing up to 8 Million samples per channel of acquired data
in its on-board memory or streaming acquired data to motherboard memory.

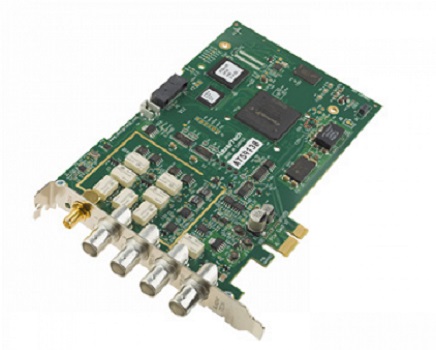

ATS9130 - 12 bit, 50 MS/s, 2ch
ATS9130 is a 2-channel, 12-bit, 50 MS/s waveform digitizer capable of storing up to 8 Million samples per channel of acquired data in its on-board memory
or streaming acquired data to motherboard memory.
ATS9130 is a single-lane PCI Express (PCIe x1) Gen 1 card, which supports up to 200 MB/s bus throughput. ATS9130 is an ideal solution for many applications.
Features:
- 50 MS/s Real Time Sampling per channel
- 2 channels sampled simultaneously
- 12 bit A/D resolution
- Up to 8 Million samples of on-board acquisition memory per channel
- Continuous Streaming Mode
- External clock from 50 MHz to 1 MHz
- Up to 25 MHz full power bandwidth
- ±40 mV to ±20 V Input Range
- 60 dB Signal to Noise Ratio
- NIST- or CNRC-Traceable Calibration
- Trigger Input & Auxiliary I/O connectors
- Half-Length PCIe x1 Card
- AlazarDSO Software allows quick start-up
- SDK for C++/C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux

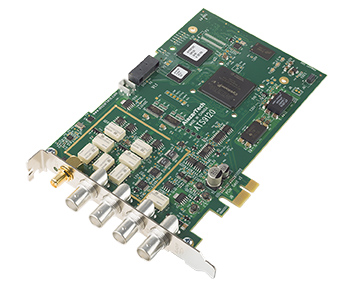

ATS9120 - 12 bit, 20 MS/s, 2ch
ATS9120 is a 2-channel, 12-bit, 20 MS/s waveform digitizer capable of storing up to 8 Million samples per channel of acquired data in its on-board memory
or streaming acquired data to motherboard memory.
ATS9120 is a single-lane PCI Express (PCIe x1) Gen 1 card, which supports up to 200 MB/s bus throughput.
ATS9120 is an ideal solution for any scanning applications that involve acquisition of data with a rapidly occurring trigger.
Features:
- 20 MS/s Real Time Sampling per channel
- 2 channels sampled simultaneously
- 12 bit A/D resolution
- Up to 8 Million samples of on-board acquisition memory per channel
- Continuous Streaming Mode
- External clock from 20 MHz to 1 MHz
- Up to 10 MHz full power bandwidth
- ±40 mV to ±20 V Input Range
- 60 dB Signal to Noise Ratio
- NIST- or CNRC-Traceable Calibration
- Trigger Input & Auxiliary I/O connectors
- Half-Length PCIe x1 Card
- AlazarDSO Software allows quick start-up
- SDK for C++/C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux
