PCI Express Digitizers - 12 bit, 500 MS/s
⠀⠀⠀⠀⠀⠀⠀⠀⠀
ATS9352 / ATS9353
12-bit waveform digitizer board that can sample two analog inputs
at rates up to 500 MS/s.
ATS9352 - 12 bit, 500 MS/s

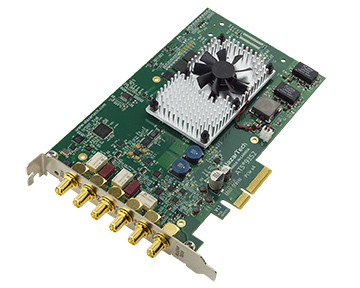

ATS9352 is a 12-bit waveform digitizer board that can sample two analog inputs at rates up to 500 MS/s.
With data throughput as fast as 1.6 GB/s (1600 MB/s), ATS9352 is an ideal solution for many applications, including OCT,
radar, ultrasonics, spectrometry, and RF signal recording.
Features:
- 500 MS/s Real Time Sampling per channel
- 1.6 GB/s throughput across PCIe Gen2 x4 bus
- 2 channels sampled at 12 bit resolution
- Up to 250 MHz full power bandwidth
- Variable Input Range from ±100 mV to ±4 V
- NIST- and CNRC-Traceable Calibration
- Continuous Streaming Mode
- 256 Megasamples of Dual-Port Memory per channel
- Trigger Input & Trigger Output connectors
- Half-Length PCIe Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux
ATS9353 - 12 bit, 500 MS/s
ATS9353 is a low-noise 12-bit waveform digitizer board designed for OEM customers. It can sample two analog inputs at rates up to 500 MS/s.
With fixed input range of ±400 mV and signal to noise ratio in excess of 60 dB, ATS9353 is an ideal solution for swept-source OCT applications.
Customers who require variable input range should use ATS9352.
Features:
- 500 MS/s Real Time Sampling per channel
- 1.6 GB/s throughput across PCIe Gen2 x4 bus
- 2 channels sampled at 12 bit resolution
- Up to 250 MHz full power bandwidth
- ±400 mV fixed Input Range
- 60.26 dB Signal to Noise Ratio at 100 MHz
- NIST- and CNRC-Traceable Calibration
- Continuous Streaming Mode
- 256 Megasamples of Dual-Port Memory per channel
- Trigger Input & Trigger Output connectors
- Half-Length PCIe Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux
