PCI Express Digitizers - 12bit, 1-4 GS/s.
⠀⠀⠀⠀⠀⠀⠀⠀⠀
PCI Express Digitizers 1 - 4 GS/s.
12-bit waveform digitizer board that can sample rates up to 1-4 GS/s.
ATS9364 - 12 bit, 1 GS/s
ATS9364 is a low-noise, 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.
With data throughput as fast as 3 GB/s (3000 MB/s), ATS9364 is an ideal solution for many applications,
including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
ATS9371 - 12 bit, 1 GS/s
ATS9371 is a 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.
With on-FPGA FFT signal processing and data throughput as fast as 6.8 GB/s (6800 MB/s),
ATS9371 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
ATS9360 - 12 bit, 1.8 GS/s
ATS9360 is a fast, 12-bit waveform digitizer based on the 8-lane PCI Express Gen2 interface.
With on-FPGA FFT and boasting data throughput as fast as 3.5 GB/s (3500 MB/s) and sample rate of 1.8 GS/s across 2 simultaneous inputs,
ATS9360 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
ATS9373 - 12 bit, 4 GS/s
ATS9373 is a 12-bit waveform digitizer board that can sample one analog input at rates up to 4 GS/s or two inputs at 2 GS/s.
With on-FPGA FFT signal processing and data throughput as fast as 6.9 GB/s (6900 MB/s), ATS9373 is an ideal solution for many applications,
including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.

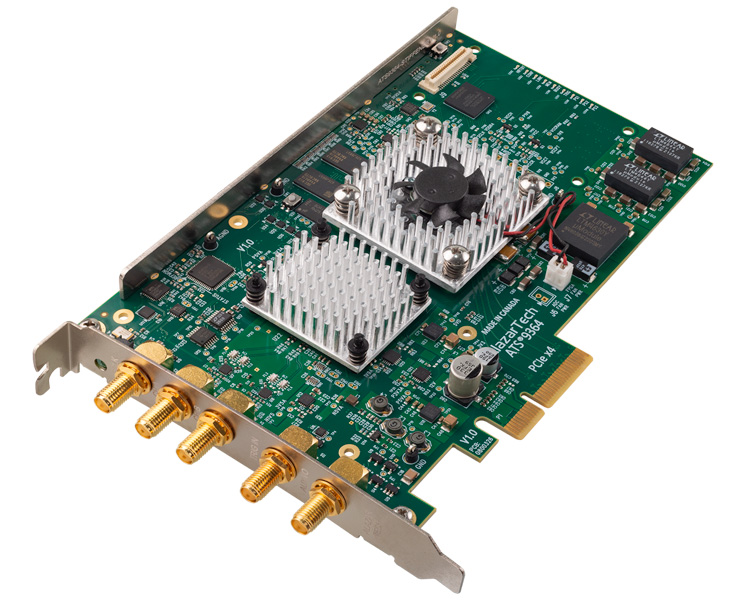

ATS9364 - 12 bit, 1 GS/s
ATS9364 is a low-noise, 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.
With data throughput as fast as 3 GB/s (3000 MB/s), ATS9364 is an ideal solution for many applications,
including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
ATS9371 - 12 bit, 1 GS/s
ATS9371 is a 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.
With on-FPGA FFT signal processing and data throughput as fast as 6.8 GB/s (6800 MB/s),
ATS9371 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
ATS9360 - 12 bit, 1.8 GS/s
ATS9360 is a fast, 12-bit waveform digitizer based on the 8-lane PCI Express Gen2 interface.
With on-FPGA FFT and boasting data throughput as fast as 3.5 GB/s (3500 MB/s) and sample rate of 1.8 GS/s across 2 simultaneous inputs,
ATS9360 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
ATS9373 - 12 bit, 4 GS/s
ATS9373 is a 12-bit waveform digitizer board that can sample one analog input at rates up to 4 GS/s or two inputs at 2 GS/s.
With on-FPGA FFT signal processing and data throughput as fast as 6.9 GB/s (6900 MB/s), ATS9373 is an ideal solution for many applications,
including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
