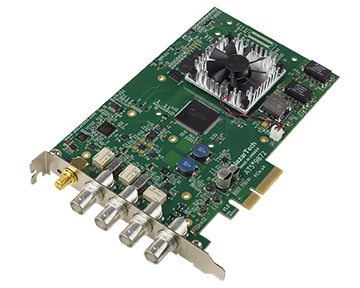

ATS9872 - 8 bit, 1 GS/s
ATS9872 is an 8-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.
With data throughput as fast as 1.6 GB/s (1600 MB/s), ATS9872 is an ideal solution for many applications,
including radar, lidar, ultrasonic NDT, spectrometry, and RF signal recording.
Features:
- 1 GS/s Real Time Sampling per channel
- 1.6 GB/s throughput across PCIe Gen2 x4 bus
- 2 channels sampled at 8-bit resolution
- 450 MHz full power bandwidth
- ±100 mV to ±4 V Input Range
- 46 dB Signal to Noise Ratio
- NIST traceable calibration
- Continuous Streaming Mode
- 512 Megasamples of Dual-Port Memory per channel
- Trigger Input & Trigger Output connectors
- Half-length PCIe card
- AlazarDSO software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW
- Support for Windows & Linux
