XY, XYZ & Gantry Stages
⠀⠀⠀⠀⠀⠀⠀⠀⠀
ZABER XY, XYZ & Gantry Stages
- Typical lead times are between 1 and 10 business days for standard systems
- Stand-alone or built-in controllers; optional encoders
- You can design an XY gantry stage or XYZ gantry stage with our gantry configuration tool, or you can contact our Applications Engineering Team to set up a multi-axis system for you
- Up to 1.5 m travel, 1000 kg load, 700 mm/s speed
An XY stage or XYZ stage is defined as a device that provides high precision positioning along 2 perpendicular axes of motion or 3 perpendicular axes of motion respectively.
A gantry stage is a type of XY or XYZ stage in which two parallel linear stages comprise the X-axis and straddle the working area, supporting either end of the linear stage that comprises the Y-axis. Some or all axes may be motorized.
Zaber offers a wide selection of XY, XYZ, and Gantry stages.

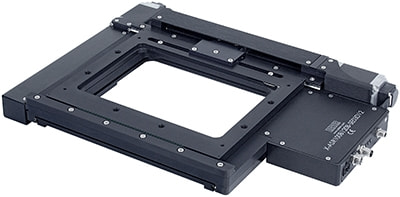

ASR Family — Motorized XY Microscope Stages
Starting Price
$5,401.00 (USD)
- Includes Nucleus microscopy modules
- 50 x 50 mm - 305 x 305 mm travel
- Easily adjustable non-contact hall sensor limit switches
- Built-in controller or motor-only models
| Shortest Lower Travel | Longest Lower Travel | Shortest Upper Travel | Logest Upper Travel | Best Accuracy | Highest Speed | Highest Thrust | Load |
| 50 mm (0.969") | 350 mm (12.008") | 50 mm (1.969") | 305 mm (12.008") | 12 µm (0.000472") | 85 mm/s (3.346"/s) | 95 N (21.3 lb) | 200 N (44.9 lb) |

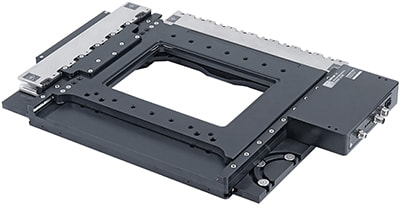

X-ADR-AE Series — Linear Motor XY Microscope Stages
Starting Price
$10,295.00 (USD)
- A Nucleus microscopy module
- Linear motors for high speed quiet XY operation
- 130 x 100 mmm, 250 x 100 mm travel
- 1 nm resolution linear encoder for direct position measurement and correction
| Shortest Lower Travel | Longest Lower Travel | Shortest Upper Travel | Logest Upper Travel | Best Repeatability | Best Minimum Incremental Move | Highest Speed | Highest Thrust | Load |
| 130 mm (5.118") | 250 mm (9.843") | 100 mm (3.937") | 100 mm (3.937") | <0.5 µm (<0.000020") | 50 nm | 750 mm/s (29.528"/s) | 35 N (7.8 lb) | 50 N (11.2 lb) |

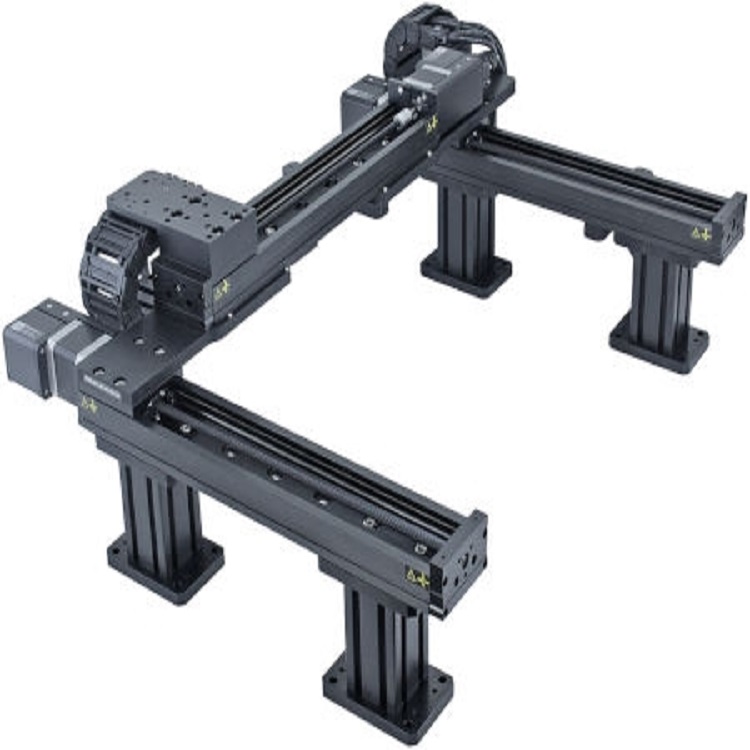

GANTRY Series — XY & XYZ Gantry Stages
Starting Price
$6,087.00 (USD)
- Use our configuration tools to select from a wide variety of travel, speed, load and mounting orientations
- Includes X-MCC controller for coordinated multi-axis motion including line, arc, circle and lockstep of parallel axes
- Digital and analog inputs and outputs for coordinating with other equipment
| X Travel Range | Y Travel Range | Best Load Capaccity | Highest Speed | Best Continuous Thrust |
| 100 - 3500 mm (3.937" - 137.7956") | 100 - 3500 mm (3.937" - 137.7956") | 100 kg | 3000 mm/s (118.110"/s) | 1200 N (269.1 lb) |

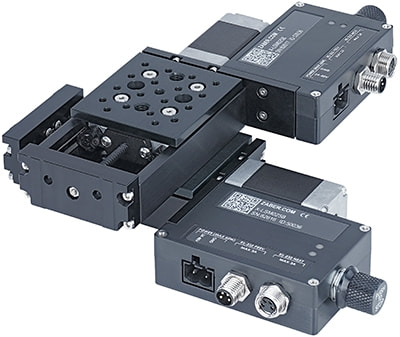

XY Series — Motorized XY Stages
Starting Price
$4,382.00 (USD)
- Two-axis stages with built-in controllers
- 25 mm up to 1000 mm travel per axis
- Available in various speed / resolution options
- Several units daisy-chain to a single serial port
| Shortest Travel | Longest Travel |
| 25 mm (0.984") | 1000 mm (39.370") |

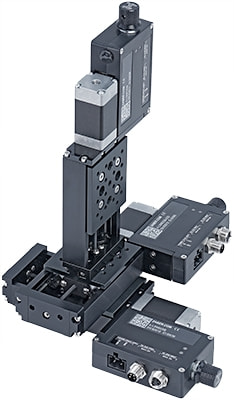

XYZ Series — Motorized XYZ Stages
Starting Price
$6,506.00 (USD)
- Three-axis stages with built-in controllers
- 25 mm up to 1000 mm travel per axis
- Available in various speed / resolution options
- Several units daisy-chain to a single serial port
| Shortest Travel | Longest Travel |
| 25 mm (0.984") | 200 mm (7.874") |
