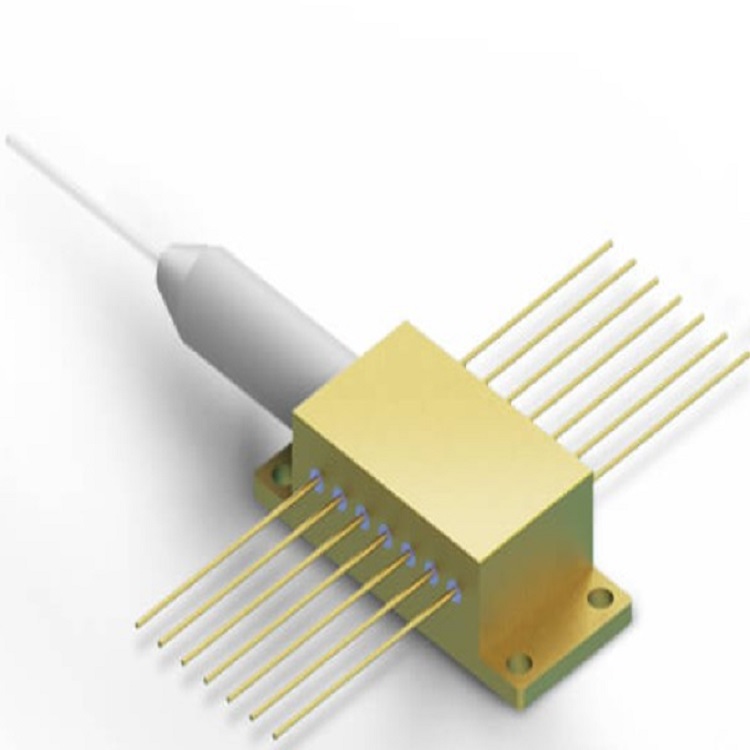

785nm-600mW Fiber Coupled Diod laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
BWT
785nm-600mW
BWT mainly promotes wavelength-locked fiber-coupled or window-output semiconductor lasers suitable for laser Raman, lidar and other detection applications, focusing on products with different characteristics such as light weight, small size, and narrow line width.
features：
- Wavelength 785nm
- Output Power 600mW
- Fiber core diameter 105μm
- Optical fiber numberical aperture 0.22NA
785nm-600mW
BWT mainly promotes wavelength-locked fiber-coupled or window-output semiconductor lasers suitable for laser Raman, lidar and other detection applications, focusing on products with different characteristics such as light weight, small size, and narrow line width.
features：
- Wavelength 785nm
- Output Power 600mW
- Fiber core diameter 105μm
- Optical fiber numberical aperture 0.22NA

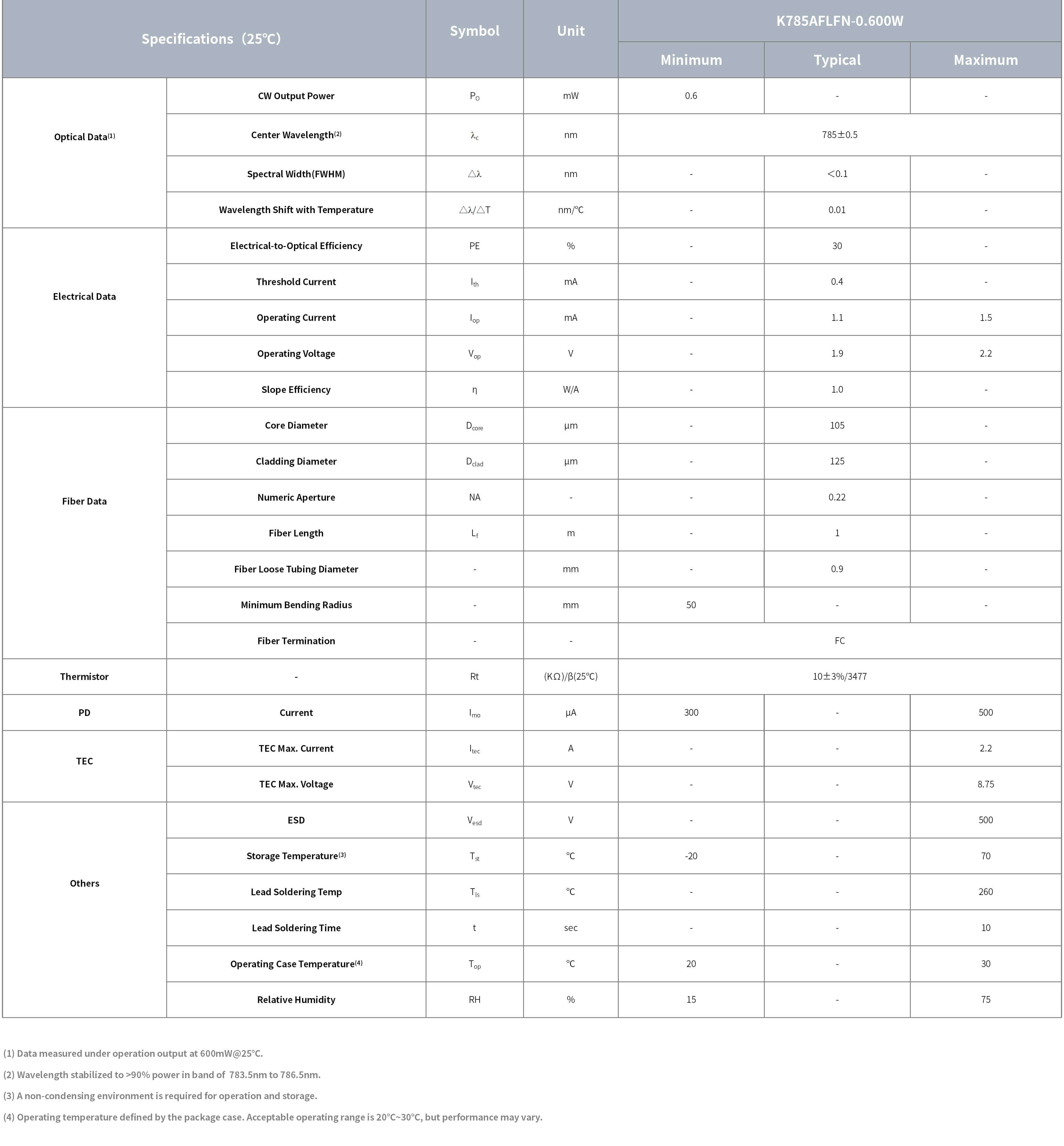

Performance Parameter

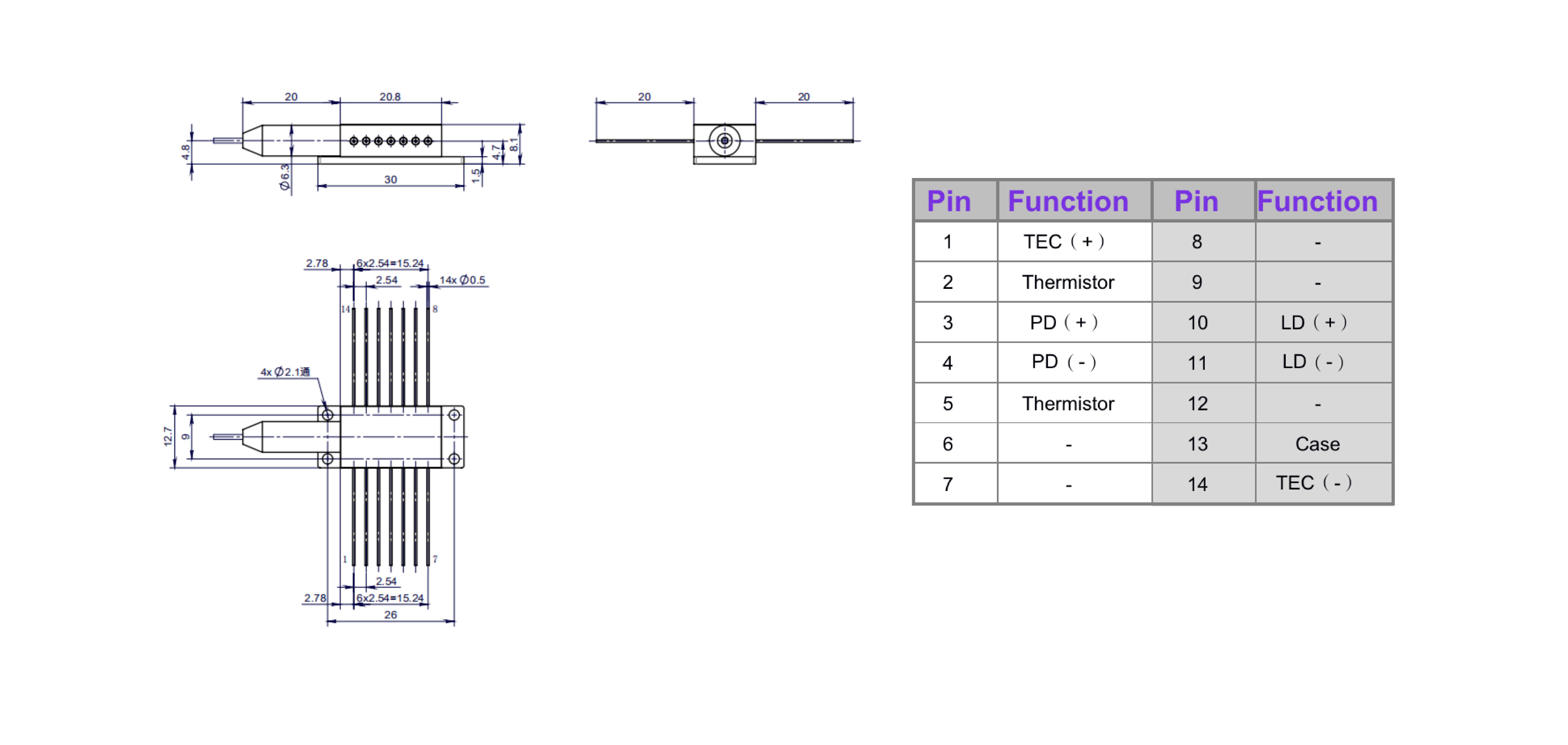

Structure Size (mm)
Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close
- to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and
- cutting the fiber.
- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 20℃ to 30℃ .
- Storage temperature ranges from -20℃ to +70℃.
