AROONA-CONNECT
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Cailabs

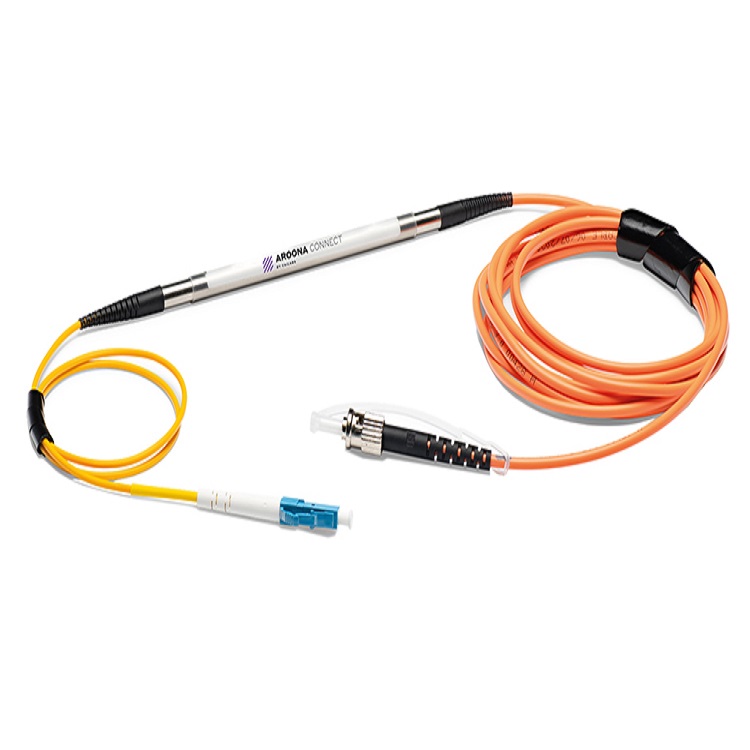

AROONA-CONNECT is a passive jumper that converts multimode fibers into single-mode fibers. Simply plug AROONA-CONNECT between the switch and the patch panel to reach up to 40 Gbps over any type of multimode fiber.
AROONA-CONNECT completes the AROONA-STAR offer by providing a solution for shorter fiber links and making upgrading multimode fibers faster than ever.
Applications:
- Passive Optical LAN
- Government
- Healthcare
- Industry
- Ski resorts
- Education
AROONA-CONNECT
AROONA-CONNECT is a passive jumper that converts multimode fibers into single-mode fibers.
Simply plug AROONA-CONNECT between the switch and the patch panel to reach up to 40 Gbps over any type of multimode fiber.
AROONA-CONNECT completes the AROONA-STAR offer by providing a solution for shorter fiber links and making upgrading multimode fibers faster than ever.
Upgrade your existing multimode links faster than ever
- Optimize your existing infrastructure in record time
- Plug and Play solution. Connect the single-mode active equipment to your existing fiber cables
- Several configurations to match your current patch panels and applications
- Short lead time
Increased multimode fiber transmission capacity and compatibility with standard equipment
- From 1 Gbps to 40 Gbps on multimode fibers
- Range up to 550 m
- Single-mode input (9/125 µm) and multimode output (50/125 µm)
- Compatible with OM1 to OM5 fiber (62.5 or 50/125 μm)
- Compatible with standard duplex or bidirectional single-mode transceivers
- Compatible with Ethernet, GPON, WDM, and TV/RF over fiber
- Implementation:
Environmental and economic benefits
- Passive solution: no power supply
- No need for new single-mode fiber cable or civil works
- Reduced cost compared to rip and replace projects
- Low carbon footprint: existing cabling is reused
