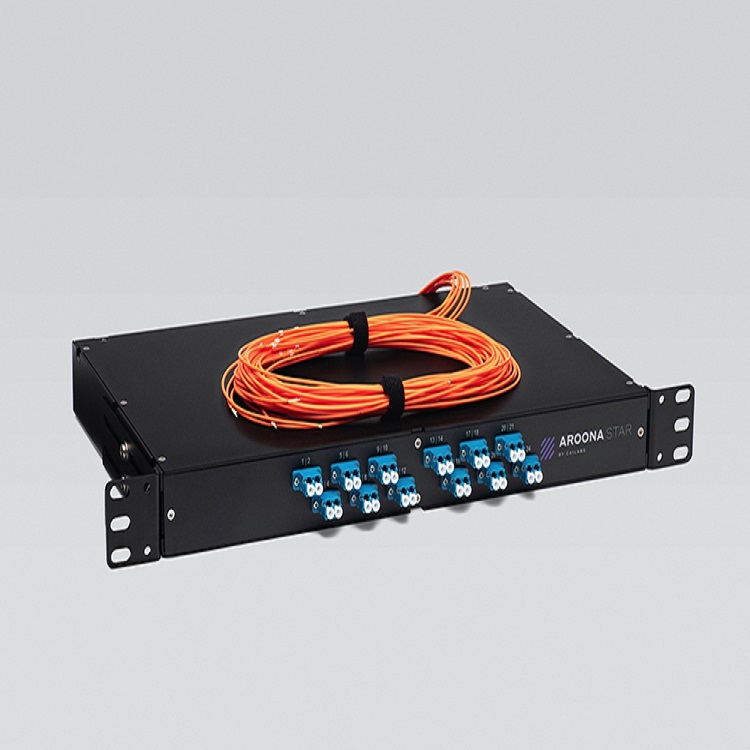

AROONA-STAR
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Cailabs
AROONA-STAR is a passive box that enables throughput of 10 Gb/s or more over multimode optical links up to several kilometers long, without having to replace the fiber optic cable.
AROONA-STAR offers a flexible and affordable solution that reduces the costs of upgrading the cabling infrastructure while significantly reducing the carbon footprint (no new fiber optic cables or civil engineering works required)
Applications:
- Passive Optical LAN
- Government
- Healthcare
- Industry
- Ski resorts
- Education
AROONA-STAR
AROONA-STAR is a passive box that enables throughput of 10 Gb/s or more over multimode optical links up to several kilometers long, without having to replace the fiber optic cable.
AROONA-STAR offers a flexible and affordable solution that reduces the costs of upgrading the cabling infrastructure while significantly reducing the carbon footprint
(no new fiber optic cables or civil engineering works required)
Need to increase your network's throughput?
Increase your network bandwidth by converting multimode fibers
into single-mode fibers with AROONA-STAR solution

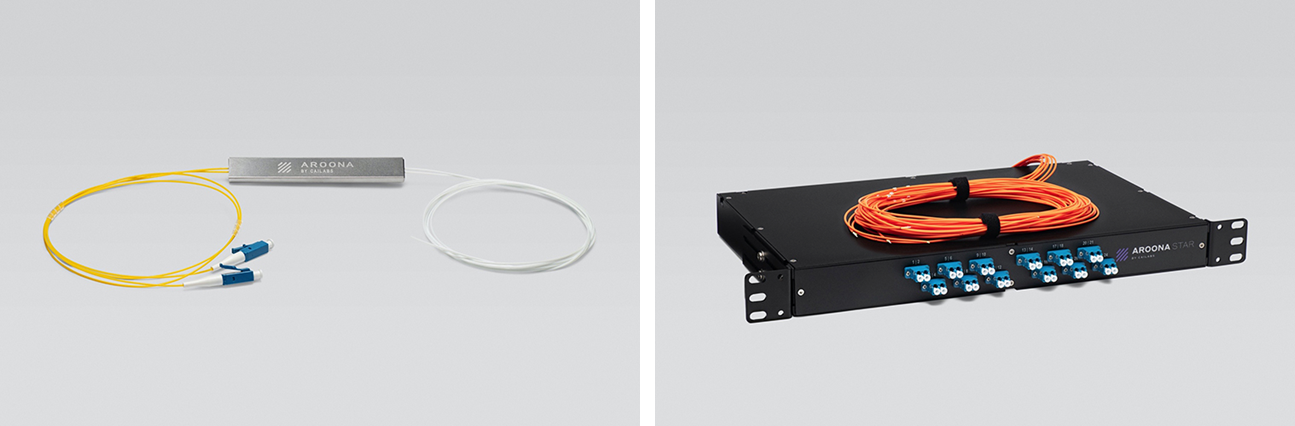

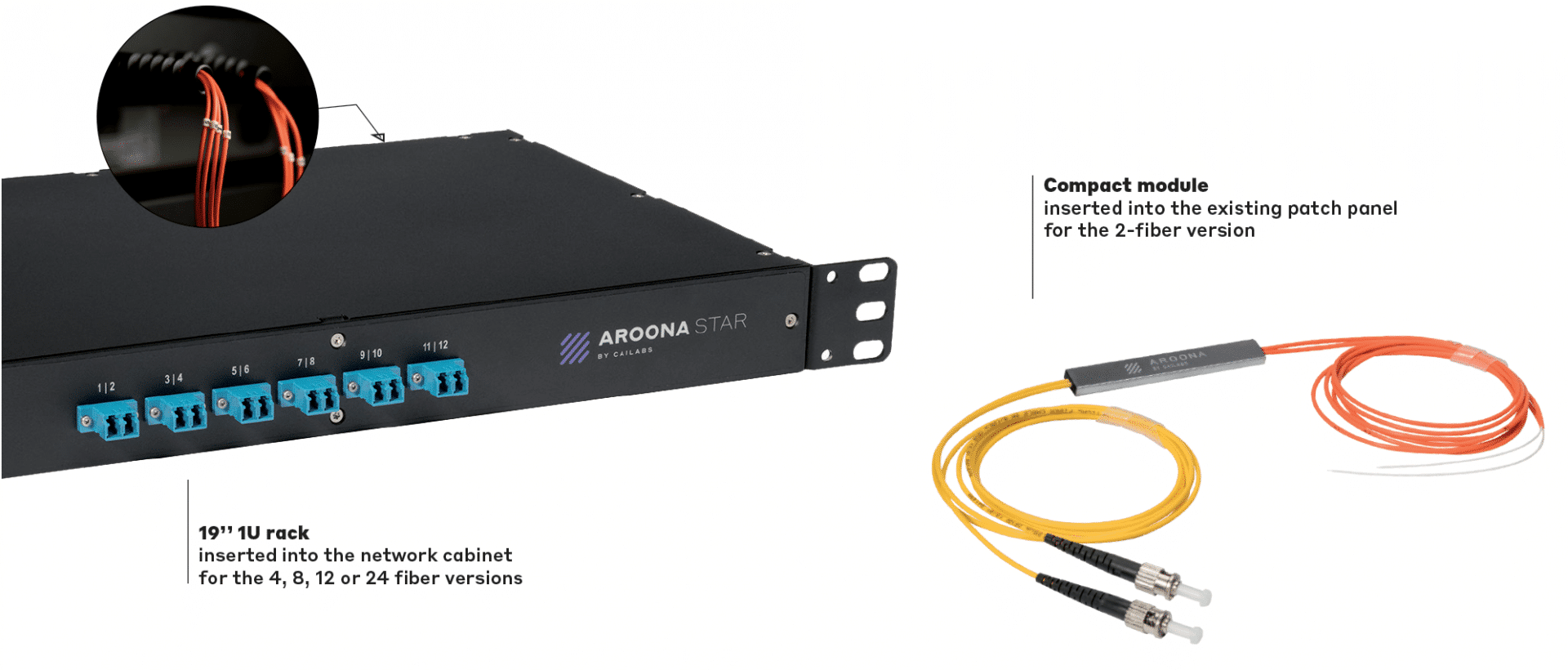

AROONA-STAR is available in two different formats
depending on the number of multimode fibers to be upgraded and the available space in the existing infrastructure:
A simple box to increase network bandwidth
without replacing existing cabling infrastructure
Increased multimode fiber transmission capacity and compatibility with standard equipment
- From 1 Gb/s to 100 Gb/s on multimode fibers over up to several kilometers
- Compatible with OM1 to OM5 fibers (62.5 or 50/125 μm)
- Compatible with standard duplex or bidirectional single-mode transceivers
- Wavelength Division Multiplexing (WDM) compatibility for flexible scalability of transmission capacity

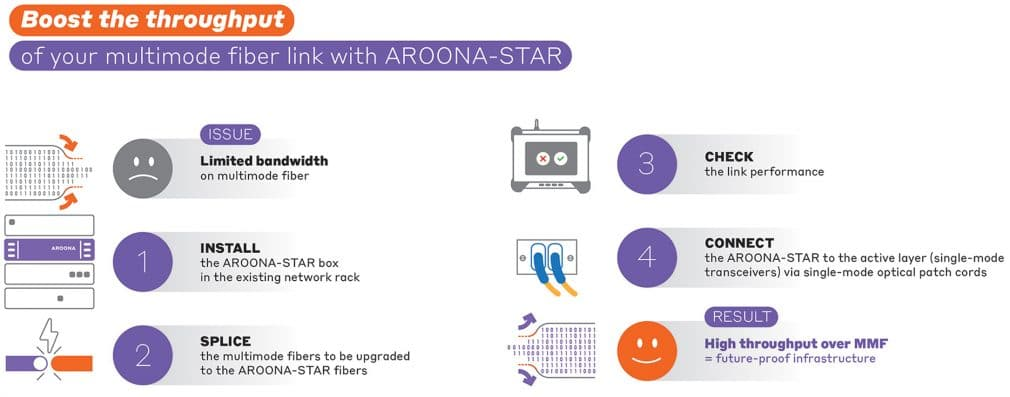

Quick and easy to install
- Simplified audit and deployment, without the need for recabling
- Solution operational after a simple fiber fusion splice
- Passive equipment: no power supply or electronics needed
- Short-term service interruption (average of 1 hour per link)
- Non-intrusive intervention on patch panels only
- Impact on site activity minimized
- Zero configuration, zero maintenance
Passive equipment and economic benefits
- 2 to 10 times less expensive than optical fibers redeployment
- 5-year warranty
- Environmentally friendly: recycling of cabling infrastructure
