High-power 355nm Picosecond Pulse Laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Precilasers

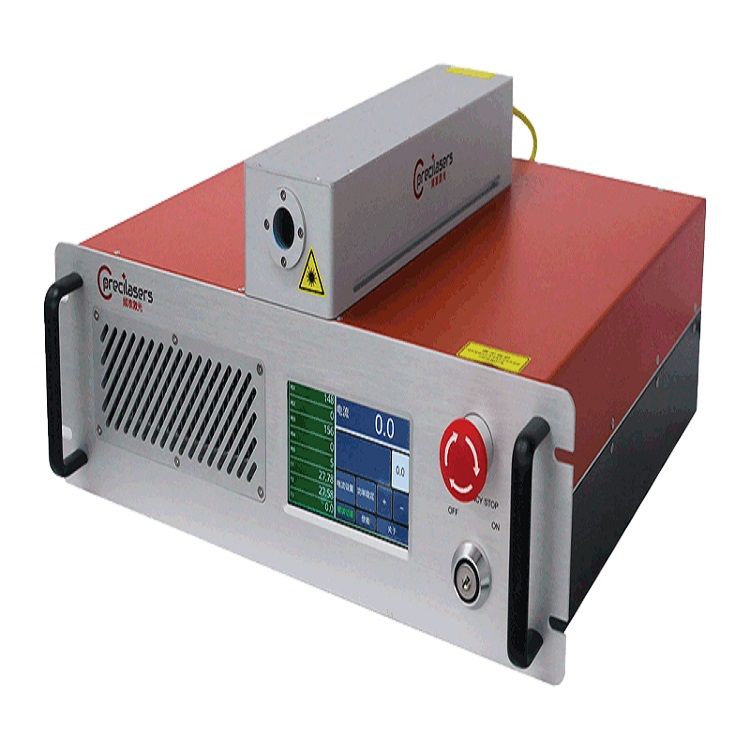

High-power 355nm Picosecond Pulse Laser
Features:
- High power: up to 2W
- High Repetition Rate: 48MHz/80MHz/100MHz
- Perfect Beam Quality
- High Power Stability
- Pulse Width: <10ps
- Long life time
- Easy Control, One-key start-up
OverView
High-power 355nm picosecond pulse laser offered by Precilasers is based on self-developed ultrafast laser with high repetition rate, high power yb-doped fiber amplifier with low noise and high efficiency triple frequency conversion module. The laser can support 24*7 non-stop work without maintenance, making it suitable for a wide range of industrial application scenarios
The laser also has excellent mode-locked self-start performance, which can achieve 100,000 continuous power-on mode-locking self-starting.
The pulse repetition rate can be up to 100 MHz, and the pulse width is less than 10 ps. The made-in-China UV laser from Precilasers not only has excellent parameters,
but also supports touch screen/host computer operation mode as well as one-key start-up, which is very easy to use. At the same time,
excellent quality control enables the laser to have a significantly higher service life than the normal industry products.
Features:
- High power: up to 2W
- High Repetition Rate: 48MHz/80MHz/100MHz
- Perfect Beam Quality
- High Power Stability
- Pulse Width: <10ps
- Long life time
- Easy Control, One-key start-up
Applications:
- AMO
- Raman microphotography
- LIBS
- Flexible material cutting
- Solar cell scribing

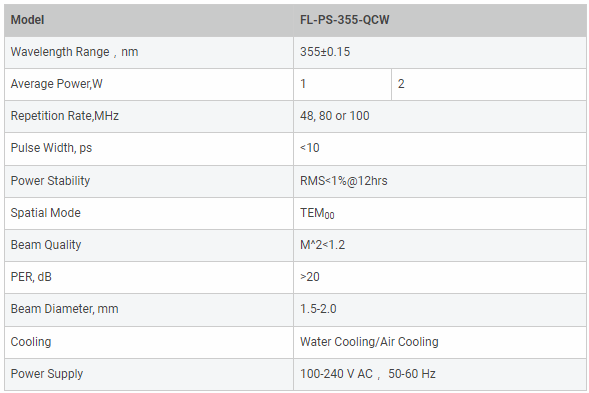

Specification:
OverView
High-power 355nm picosecond pulse laser offered by Precilasers is based on self-developed ultrafast laser with high repetition rate, high power yb-doped fiber amplifier with low noise and high efficiency triple frequency conversion module. The laser can support 24*7 non-stop work without maintenance, making it suitable for a wide range of industrial application scenarios
The laser also has excellent mode-locked self-start performance, which can achieve 100,000 continuous power-on mode-locking self-starting.
The pulse repetition rate can be up to 100 MHz, and the pulse width is less than 10 ps. The made-in-China UV laser from Precilasers not only has excellent parameters,
but also supports touch screen/host computer operation mode as well as one-key start-up, which is very easy to use. At the same time,
excellent quality control enables the laser to have a significantly higher service life than the normal industry products.
Features:
- High power: up to 2W
- High Repetition Rate: 48MHz/80MHz/100MHz
- Perfect Beam Quality
- High Power Stability
- Pulse Width: <10ps
- Long life time
- Easy Control, One-key start-up
Applications:
- AMO
- Raman microphotography
- LIBS
- Flexible material cutting
- Solar cell scribing
Specification:
