High power single frequency fiber laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Precilasers
High power single frequency fiber laser

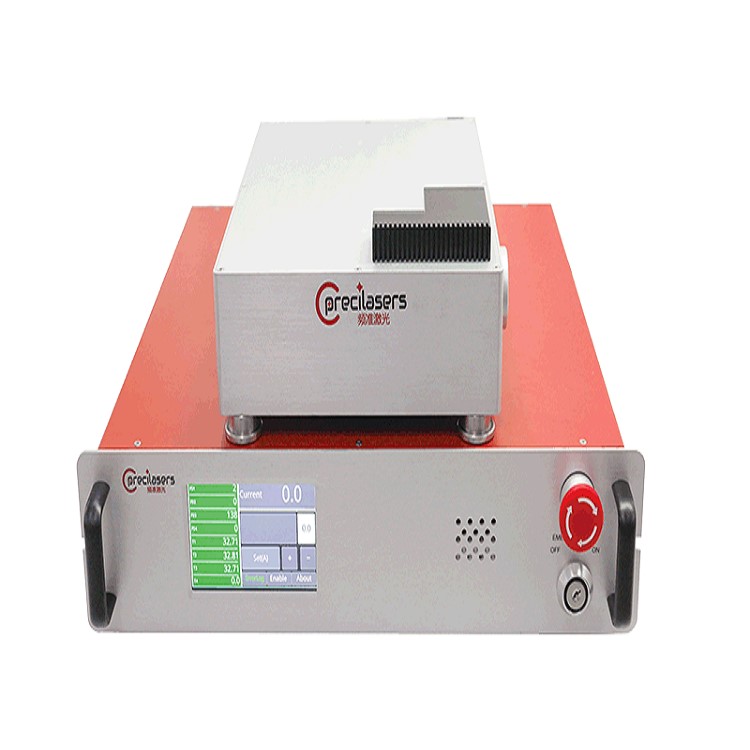

PreciLasers offers a high-power (up to 130 W), low intensity noise,
narrow linewidth highly-reliable fiber laser for the optical lattice application.
It is a combination of an all-fiber Ytterbium amplifier and an ultra-narrow linewidth ECDL laser at 1064 nm as a seed source.
The intensity noise of the laser is < -140 dBc/Hz from 10 kHz to 10 MHz.
The full protection system of the laser ensures long-term free of maintainence and long life time.
The laser is compact and robust, which only occupies an area of 300*240 mm²
High power single frequency fiber laser
PreciLasers offers a high-power (up to 130 W), low intensity noise, narrow linewidth highly-reliable fiber laser for the optical lattice application.
It is a combination of an all-fiber Ytterbium amplifier and an ultra-narrow linewidth ECDL laser at 1064 nm as a seed source.
The intensity noise of the laser is < -140 dBc/Hz from 10 kHz to 10 MHz. The full protection system of the laser ensures long-term free of maintainence and long life time.
The laser is compact and robust, which only occupies an area of 300*240 mm²
1064 nm fiber amplifier / laser
Yb-doped fiber amplifier / laser 976-1120 nm
Er-doped fiber amplifier / laser 1530-1598 nm
Tm-doped fiber amplifier / laser 1730-2050 nm
High power single frequency fiber laser
PreciLasers offers a high-power (up to 130 W), low intensity noise, narrow linewidth highly-reliable fiber laser for the optical lattice application.
It is a combination of an all-fiber Ytterbium amplifier and an ultra-narrow linewidth ECDL laser at 1064 nm as a seed source.
The intensity noise of the laser is < -140 dBc/Hz from 10 kHz to 10 MHz. The full protection system of the laser ensures long-term free of maintainence and long life time.
The laser is compact and robust, which only occupies an area of 300*240 mm²
1064 nm fiber amplifier / laser
Yb-doped fiber amplifier / laser 976-1120 nm
Er-doped fiber amplifier / laser 1530-1598 nm
Tm-doped fiber amplifier / laser 1730-2050 nm
