Full-band Tunable Laser System Full-band TSL
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Santec
Full-band TSL
440 nm tuning, high-performance tunable laser system
- Wide wavelength range 1240 to 1680 nm
- Mode-hop-free wavelength sweeps
- 200 nm/s sweep speed
Overview

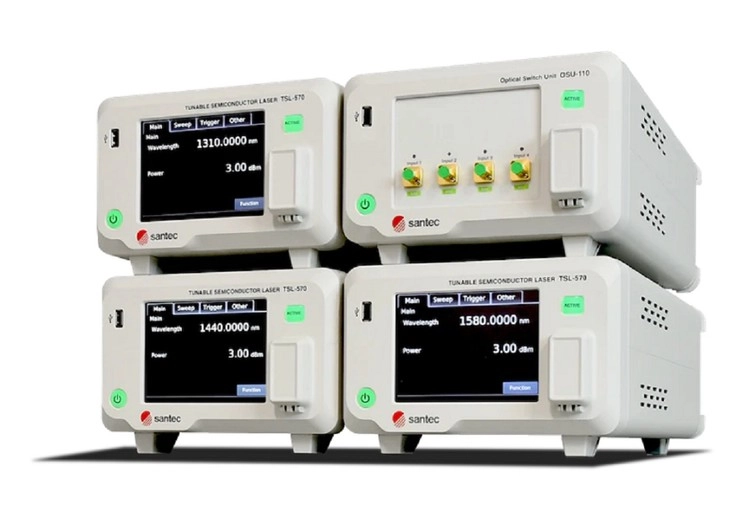

The system combines up to four of our tunable lasers (TSL-570) with an optical switch module (OSU-110) and control software.
The complete full-band TSL has excellent cost performance, high wavelength accuracy, and fast sweeping for use in both R&D and production environments.
Features and Characteristics
- Wide wavelength range 1240 to 1680 nm
- Mode-hop-free wavelength sweeps
- 200 nm/s sweep speed

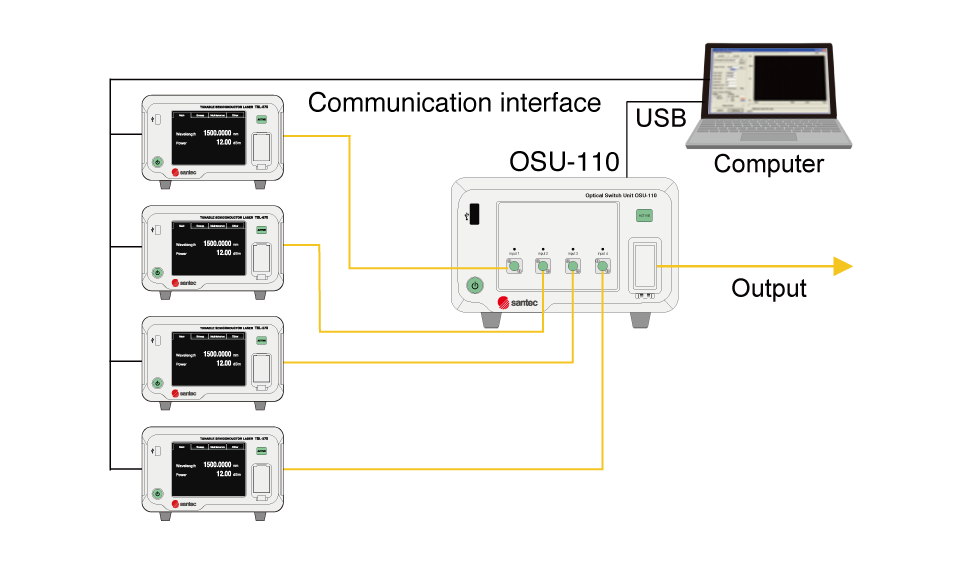

Typical Configuration
Applications
- Optical characterization of components and modules:- Tunable filters, interleavers, Fiber Bragg gratings, couplers, splitters, isolators, switches, etc.
- WSS and wavelength blockers
- DWDM components
- Silicon photonic material characterization, including micro-cavity ring resonators
- Spectroscopy
- Interferometry
Please refer to here for details. -> Swept Test System
