100417

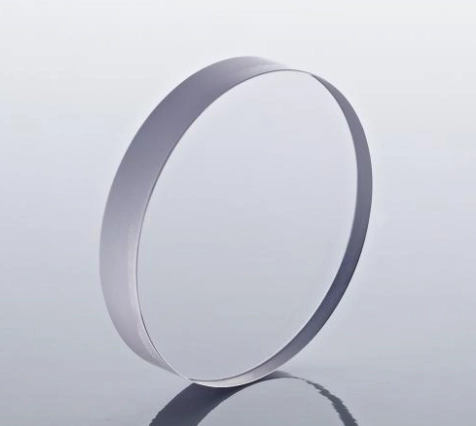

Laser Mirror Sapphire (random) | plane | Ø=12.7(-0.1)mm
t=3.0(±0.1)mm | //<5min
S1: commercial polish | chamfer 0.2 uncoated
S2(^): Øe10 | 3/1(1) [L/2] | 5/2x0.04; L5x0.004 | chamfer 0.2
HR(0°,2940nm)>99.8%
100417
Laser Mirror Sapphire (random) | plane | Ø=12.7(-0.1)mm
t=3.0(±0.1)mm | //<5min
S1: commercial polish | chamfer 0.2 uncoated
S2(^): Øe10 | 3/1(1) [L/2] | 5/2x0.04; L5x0.004 | chamfer 0.2
HR(0°,2940nm)>99.8%
