SHG Crystals
⠀⠀⠀⠀⠀⠀⠀⠀⠀

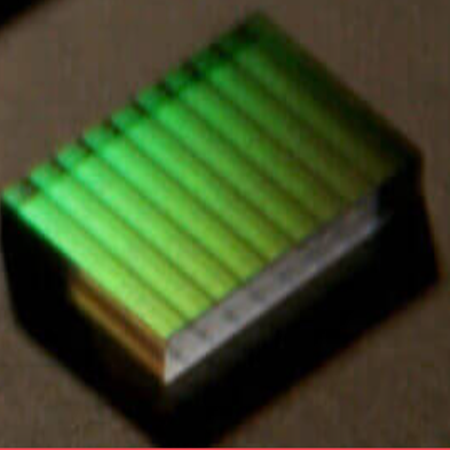

Stock MgO:PPLN SHG crystals & waveguides are available for a wide range of common pump laser wavelengths from 976 nm to 2100 nm, allowing generation of light between 488nm and 1050nm.
Explore our SHG Crystal range
Want to learn more about our range? Second harmonic generation (SHG) crystals are available in a variety of wavelengths. If you can’t find a suitable product to meet your needs then please contact us to discuss your requirements.
MSHG976-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 970-992 nm
SHG range: 485-496 nm
MSHG1020-1.0
Aperture: 1.0 x 1.0 mm
Pump range: 1006-1036 nm
SHG range: 503-518 nm
MSHG1030-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1024-1036 nm
SHG range: 512-518 nm
MSHG1047-0.5
Aperture: 0.5x 0.5 mm
Pump range: 1040-1064 nm
SHG range: 520-532 nm
MSHG1064-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1058-1080 nm
SHG range: 529-540 nm
MSHG1064-1.0
Aperture: 1.0 x 1.0 mm
Pump range: 1058-1080 nm
SHG range: 529-540 nm
MSHG1080-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1060-1116 nm
SHG range: 530-558 nm
MSHG1120-1.0
Aperture: 1.0 x 1.0 mm
Pump range: 1106-1158 nm
SHG range: 553-579 nm
MSHG1180-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1116-1220 nm
SHG range: 583-610 nm
MSHG1230-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1216-1262 nm
SHG range: 608-631 nm
MSHG1320-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1284-1336 nm
SHG range: 642-668 nm
MSHG1350-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1296-1422 nm
SHG range: 648-711 nm
MSHG1420
Aperture: 0.5 x 0.5 mm
Pump range: 1350-1490 nm
SHG range: 675-745 nm
MSHG1550-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1530-1620 nm
SHG range: 765-810 nm
MSHG1550-1.0
Aperture: 1.0 x 1.0 mm
Pump range: 1545-1610 nm
SHG range: 773-805 nm
MSHG1650-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1605-1709 nm
SHG range: 803-855 nm
MSHG2100-0.5
Aperture: 0.5 x 0.5 mm
Pump range: 1925-2250 nm
SHG range: 963-1125 nm
MSHG2100-1.0
Aperture: 1.0 x 1.0 mm
Pump range: 1968-2270 nm
SHG range: 984-1135 nm
MSHG2600-1.0
Aperture: 1.0 x 1.0 mm
Pump range: 2260-3300 nm
SHG range: 1130-1650 nm
