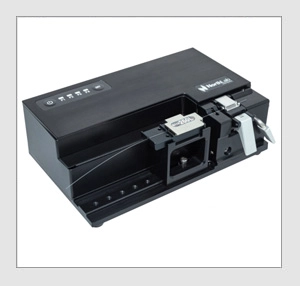

NorthLab ProCleave™ HS - High Strength Fiber Cleaver
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The ProCleave HS is an advanced electronic fiber cleaver for fibers up to 250 μm. The cleaver is specifically designed for use in production lines where ease-of-use, process speed and a high production yield is crucial. The cleaver is at the same time well suited for R&D environments.
Key Features
> Electronic cleave process for optimal cleave quality and repeatability
> Designed for fiber cladding diameters from 80 to 250
> Low cleave angles with very flat end faces, typical < 0.5° (125µm, SMF28)
> Can be powered with battery or external power supply
> Delivered with platform that support Fujikura, Fitel and 3SAE fiber holders
Technical Specifications
> 150(W) x 95(D) x 45(H) mm, 150(W) x115(D) x 55(H) mm (incl. lever)
> Weight: 0.85 kg
> Built in rechargeable Li-Ion battery or external power supply (100 - 240 V AC, 50/60 Hz)
> Supported fiber cladding: 80 - 250* μm
> Supported fiber coating: Depending on Fiber Holder
* Fiber cladding diameters from 200-250 μm requires optional LD Clamp (CL-03-01002)Standard Package and Accessories
| Product | Part Number | Qty |
| NorthLab ProCleave HS | CL-03-01000 | |
| Standard Package | ||
| Power Supply + Cord EU/US | CL-90-90002 | 1 |
| Tool Kit | CL-03-01001 | 1 |
| User's Manual & PC Software | N/A | 1 |
| USB 2.0 Cable | N/A | 1 |
| Optional Components | ||
| LD Clamp For fiber cladding 200-250 μm | CL-03-01002 |
