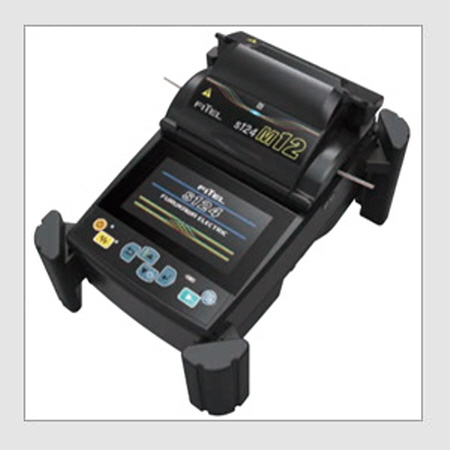

Fitel S124M12 Ribbon Fiber Fusion Splicer
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The powerful FITEL S124M12 Hand-Held Ribbon Fusion Splicer delivers fast and reliable optical splicing for both 200 and 250 µm pitched ribbon fiber even under rigorous environmental conditions. The S124M12 combines multiple functions into one machine, offering a wider range of capabilities that unites innovative technology, cost savings and opens the door to an entirely new range of applications.
Designed with end users in mind, the FITEL S124M12 Fusion Splicer delivers rapid splicing/heating with reliable and consistent results. This fusion splicer is suitable for the use of hyper-scale ribbon cable, and is an excellent choice for a variety of deployments including Data Centers, Metro, Backbone and Long-Haul applications. A broad range of new features that enhance communication, ease of use, portability and field durability have been combined together to make the S124M12 Fusion Splicer one of the most powerful and user-friendly fusion splicing machines available today.
Product Features
> Easily exchangeable fiber guide V-grooves
> Up to 12-fiber ribbon splicing
> 15-second-high speed splicing operation
> Applicable for both 250 µm and 200 µm pitch ribbon fiber
> Simple operation with touch panel and GUI
> 3 Bright LED’s to illuminate the operation area
> Wi-Fi connectivity for smartphone data management and control
Technical Specs
> Applicable fibers*1: SM (ITU-T G.652 / G.657A1 / G.657A2), MM (ITU-T G.651), DS (ITU-T G.653) NZD (ITU-T G.655), UBIF (ITU-T G.657B3)
> Fiber count: 2, 4, 6, 8, 12
> Cladding diameter: 125 µm
> Fiber coating diameter: Single fiber: 200 µm, 250 µm, 900 µm
| Ribbon fiber: 200 µm, 250 µm, 200-250 µm pitch transition (with holders)> Fiber cleaving length: 10mm
> Average splice loss*2: SM: 0.05dB | MM: 0.03dB | DS: 0.08dB | NZD: 0.08dB | BIF: 0.05dB
> Typical splice time: 12-fiber ribbon: 15sec. | Single fiber: 13sec.
> Typical heating time: 12-fiber ribbon: 28sec. | Single fiber: 13sec.
> Splice program Max.: 300
> Heat program Max.: 100
> Applicable protection sleeve length: 40mm / 60mm
> Tension test: 1.96N
> Discharge compensation function: Automatic correction according to temperature and atmospheric pressure
> Optical fiber observation method: Two-way observation from X and Y axes
> Monitor: 4.3 inch wide LCD monitor with touch screen
> Magnification: 24X magnification
> Splice result storage / Image capture capacity: Last 10,000 splices / Last 100 images to be automatically captured
> Dimensions: 139W x 209D x 114H mm (not including shock absorber) | 179W x 246D x 131H mm (including shock absorber)
> Weight: 1.8kg (with battery)
> Data output: USB ver.2 mini B x 1 port, Standard A x 1 port
> Power source: AC : 100-240V (50/60Hz) DC : 11-24V
> Battery capacity*3: 170 splice and heating cycles
> Electrode life*4: 2,000 splice
> Operating condition: Altitude: 0-2,000m | Wind protection: 15m/s | Operating temperature: -10 to +50 °C (non-condensing)
> Storage condition: -40 to +60 °C (non-condensing)
*1 Corresponding to optical fiber in compliance with ITU-T recommendation.
*2 This numerical number is the one when measured for the purpose to show the fusion splice characteristics in the testing method of IEC 61073-1, it is not the one to guarantee the splicing loss.
*3 Number of times that the fusion splicing of the fiber and the heat reinforcement can be performed continuously at a rate of once a 90seconds at the room temperature (20°C) condition when using a new 100% charged battery. The number of times you can use depends on the state of the battery and usage.
*4 The number of times will vary depending on the state of the electrode rod and the operating environment.
Standard Package and Accessories
| Product | Part Number | Qty |
| S124M12 main body | S124M12- X-A-0001 | 1 |
| Standard Package: | ||
| Hard carrying case | HCC-05 | 1 |
| Battery pack | S947 | 1 |
| Spare electrode | ELR-01 | 1 |
| AC adapter | S979 | 1 |
| AC power cord | - | 1 |
| Cooling tray | CTX-03 | 1 |
| Cleaning blush | VGC-01 | 1 |
| Electrode sharpener | D5111 | 1 |
| Tool case | TCC-01 | 1 |
| LCD anti-reflective sheet | ARS-01 | 1 |
| Quick Reference guide | FTS-558 | 1 |
| Instruction manual | UMC-03 | 1 |
| Optional Components | ||
| Soft carrying case | SCC-01 | 1 |
| Battery charger | S980 | 1 |
| Angled stand | AGS-02 | 1 |
| Work belt | WBT-01 | 1 |
| Neck strap work table | NSB-03 | 1 |
| Neck strap | NSB-04 | 1 |
| Transport jig | TRP-07 | 1 |
| Pedestal for transport holder | TRH-03 | 1 |
| USB cable | USB-01 | 1 |
| Car cigarettes cable | CDC-04 | 1 |
