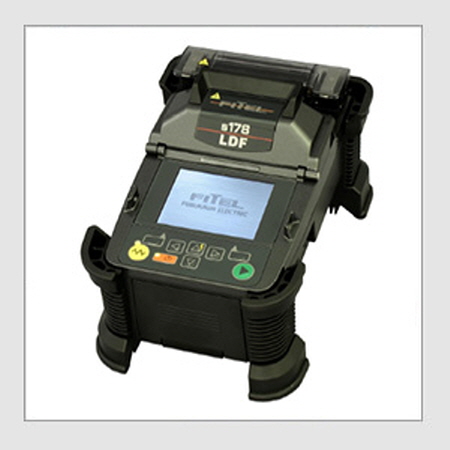

The Fitel S178LDF Large Diameter Fiber Fusion Splicer features a robust, compact, hand-held design that allows for easy portability and adapts to any location. The core alignment function achieves precise splices while the fast splice time and simple operation increases working efficiency.
Product Features
> Available for Large Diameter fiber splicing up to 450μm cladding diameter
>Rugged and compact handheld design allowing portability
>Core-alignment splice available for 125μm cladding diameter
>Active clad-alignment splice available for up to 450μm cladding diameter
>Fast splice and Fast heating
>User friendly LCD display enhancing ease-of-use
>Easy maintenance electrode replacement / mirror free alignment system
Technical Specs
Applicable Fibers: LDF, SM, MM, DS, NZDS
Cladding Diameter: 125 to 450μm
Coating Diameter: 150 to 2000μm
Fiber Cleave Length: 10mm
Average Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB (125μm cladding fiber)
Splice Time: 9 seconds (125μm cladding SM fiber)
Heat Time: 31 seconds (S922: 40mm Sleeve, S921: 60mm Sleeve)
Splice Programs: Max. 150
Heat Programs: Max. 18
Applicable Sleeves: 40 / 60 mm
Splice Memory: Max. 2000
Dimension: 159 W x 231D x 130 H mm (including shock absorber)
Weight: 1.9 kg (without battery)
Monitor: 3.5” color LCD monitor
Data Output: USB ver.2.0 mini
Battery Capacity: Typical 60 splice / heat cycles with single battery
Operating Temperature: -10 to +50 ° (0 to 95% Relative Humidity [Non-Condensing])
Storage Temperature: -40 to +60 ° (0 to 95% Relative Humidity [Non-Condensing])
Humidity: 0 to 95% Relative Humidity (Non-Condensing)
Product Features
> Available for Large Diameter fiber splicing up to 450μm cladding diameter
>Rugged and compact handheld design allowing portability
>Core-alignment splice available for 125μm cladding diameter
>Active clad-alignment splice available for up to 450μm cladding diameter
>Fast splice and Fast heating
>User friendly LCD display enhancing ease-of-use
>Easy maintenance electrode replacement / mirror free alignment system
Technical Specs
Applicable Fibers: LDF, SM, MM, DS, NZDS
Cladding Diameter: 125 to 450μm
Coating Diameter: 150 to 2000μm
Fiber Cleave Length: 10mm
Average Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB (125μm cladding fiber)
Splice Time: 9 seconds (125μm cladding SM fiber)
Heat Time: 31 seconds (S922: 40mm Sleeve, S921: 60mm Sleeve)
Splice Programs: Max. 150
Heat Programs: Max. 18
Applicable Sleeves: 40 / 60 mm
Splice Memory: Max. 2000
Dimension: 159 W x 231D x 130 H mm (including shock absorber)
Weight: 1.9 kg (without battery)
Monitor: 3.5” color LCD monitor
Data Output: USB ver.2.0 mini
Battery Capacity: Typical 60 splice / heat cycles with single battery
Operating Temperature: -10 to +50 ° (0 to 95% Relative Humidity [Non-Condensing])
Storage Temperature: -40 to +60 ° (0 to 95% Relative Humidity [Non-Condensing])
Humidity: 0 to 95% Relative Humidity (Non-Condensing)
