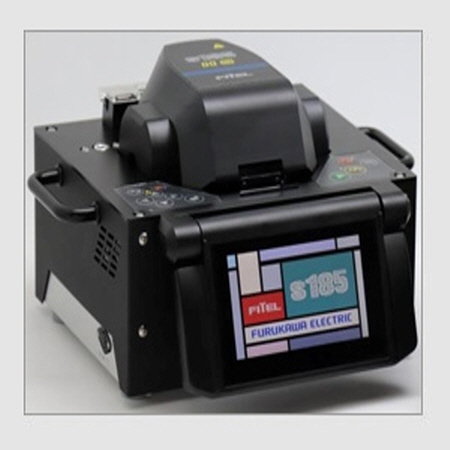

FITEL S185HS / S185PM High-end Fusion Splicers
⠀⠀⠀⠀⠀⠀⠀⠀⠀
The FITEL S185HS / S185PM High-end Fusion Splicers are designed for high strength fusion splicing of standard and specialty fibers for factory, manufacturing and R&D applications. The compact but powerful design has been optimized for use in the optical component and optical sensor fields. By targeting the necessary functions in these applications, exceptional performance and a compact design are achieved with these High-end Fusion Splicers
Features and Benefits
>Allows for High Strength Splicing
>Low splice loss
>Compact size
>High capacity built-in battery (Optional)
>LCD touch panel provides easy operation
>Short fiber cleave length allows to use ultra mini sleeve
>Remote control by Wi-Fi communication
Technical Specs
Description | S185HS | S185PM |
Applicable fibers*1 | SM, MM, DS, NZDS, High-Index, EDF | SM, MM, DS, NZDS, High-Index, EDF, PMF |
Cladding diameter | 80 to 150μm | |
Coating diameter | 160 to 2000μm (In Fiber holder) 160 to 900μm (Coating clamp splice) | 160 to 1300μm (In Fiber holder) 160 to 900μm (Coating clamp splice) |
Fiber cleave length | 3 to 5mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice) | |
Typical splice loss*2 | SM(ITU-T G652): 0.014dB | |
Typical extinction ratio*2 | − | PANDA: -36.8dB*3 (Angle offset: 0.6degree) |
Return loss | >60dB | |
Typical splice time*4 | 15s (SM by cladding clamp splice) | 15s (SM by cladding clamp splice) 40s (PANDA by cladding clamp splice) |
Tension strength | 1.96 (+0% to +20%) | |
Applicable protection sleeve length | 10 to 60mm | |
Typical heat time | 35s (S922:40mm sleeve) | |
Splice programs | Max.200 | |
Heater programs | Max.100 | |
Splice data storage | Max. 1000 including 4 images before and after splice | |
Fiber image magnification on LCD | 104X, 278X or 556X | |
Dimension | 210W x 180D x 150H mm | |
Weight (without Battery) | 4.5kg | 4.75kg |
Monitor | 4.3” wide color LCD with touch panel | |
Data output | USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port | |
Battery capacity (Optional)*5 | Typical 60 splice / heat cycles | |
Operating temperature | 0 to 40°C | |
Storage temperature | -40 to 60°C | |
Humidity | 0 to 90% (Non-condensing) | |
Power source | AC input 100 to 240V (50/60Hz) | |
*2 These are references. Depending on the environment and condition, the number vary.
*3 Extinction ratio -36.8dB is measured in the condition that the initial extinction ratio is -40dB and there is the splice with 0.6 degree of rotation offset.
*4 This value is references. Depending on the type of fiber and condition of fiber on splicer, the number can vary.
*5 This value can produce using fully charged brand new battery at room temperature 20 degree C. Depending on the condition of the battery and operation environment, the number can vary.
Standard Package and Accessories
Item |
P/N | Quantity | |||||||
S185HS | S185PM | ||||||||
-00 | -01 | -10 | -11 | -00 | -01 | -10 | -11 | ||
S185HS Main body | S185HS- X-A-0001 | 1 | 1 | 1 | 1 | − | − | − | − |
S185PM Main body | S185PM- X-A-0001 | − | − | − | − | 1 | 1 | 1 | 1 |
Hard Carrying Case | HCC-12 | − | 1 | − | 1 | − | 1 | − | 1 |
Built-in Battery Pack | S947B | − | − | 1 | 1 | − | − | 1 | 1 |
AC Adapter | S981A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
AC Cable Cord | − | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Z Stage Lock | ZL-01 | 1pair | 1pair | 1pair | 1pair | 1pair | 1pair | 1pair | 1pair |
Spare Electrode | ELR-03 | 1pair | 1pair | 1pair | 1pair | 1pair | 1pair | 1pair | 1pair |
Electrode Sharpener | D5111 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Cleaning Brush | VGC-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
User Manual | − | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
