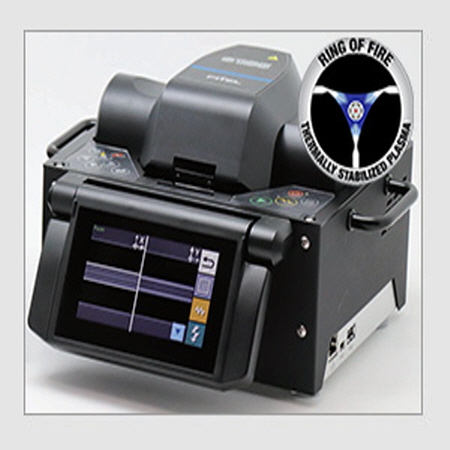

FITEL High-end Fusion Splicer S185 series featuring ROF (Ring of Fire) models, S185ROF and S185PMROF.
Though the main body is same compact as S185 series, Ring of Fire models equip the powerful arc-discharging by three electrodes instead of two electrodes. This arc-discharging makes the plasma field (high temperature field) wider and enables splicing large diameter fibers up to 800μm cladding diameter. This unique arc-discharging can heat fibers uniformly and reduce the splice loss of the fibers with dissimilar cladding diameters.
Specification
| Description | S185ROF | S185PMROF |
| Heat source for splicing | ROF (Ring of Fire, Three electrodes Arc-discharging) | ROF (Ring of Fire, Three electrodes Arc-discharging) |
| Applicable fibers*1 | SM, MM, DS, NZDS, High-Index, EDF, LDF | SM, MM, DS, NZDS, High-Index, EDF, LDF, PMF |
| Cladding diameter | 125 to 800μm | 125 to 800μm |
| Coating diameter | 160 to 2000μm (In Fiber holder) 160 to 900μm (Coating clamp splice) | 160 to 1300μm (In Fiber holder) 160 to 900μm (Coating clamp splice) |
| Fiber cleave length | 4mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice) | 4mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice) |
| Typical splice loss*2 | SM(ITU-T G652): 0.014dB | SM(ITU-T G652): 0.014dB |
| Typical extinction ratio*2 | - | PANDA: -36.8dB*3 (Angle offset: 0.6degree) |
| Return loss | >60dB | >60dB |
| Typical splice time*4 | 15s (SM by cladding clamp splice) | 15s (SM by cladding clamp splice) 40s (PANDA by cladding clamp splice) |
| Tension strength | 1.96 (+0% to +20%) | 1.96 (+0% to +20%) |
| Applicable protection sleeve length | 10 to 60mm | 10 to 60mm |
| Typical heat time | 35s (S922:40mm sleeve) | 35s (S922:40mm sleeve) |
| Splice programs | Max.200 | Max.200 |
| Heater programs | Max.100 | Max.100 |
| Splice data storage | Max. 1000 including 4 images before and after splice | Max. 1000 including 4 images before and after splice |
| Fiber image magnification on LCD | 104X, 278X or 556X | 104X, 278X or 556X |
| Dimension | 210W x 180D x 150H mm | 210W x 180D x 150H mm |
| Weight (without Battery) | 4.55kg | 4.8kg |
| Monitor | 4.3” wide color LCD with touch panel | 4.3” wide color LCD with touch panel |
| Data output | USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port | USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port |
| Operating temperature | 0 to 40°C | 0 to 40°C |
| Storage temperature | -40 to 60°C | -40 to 60°C |
| Humidity | 0 to 90% (Non-condensing) | 0 to 90% (Non-condensing) |
| Power source | AC input 100 to 240V (50/60Hz) | AC input 100 to 240V (50/60Hz) |
*1 Fibers should be applied to ITU-T standard. In case of other fibers, depending on the type of fiber, the optimization of splice program may be needed or the splice result may not be satisfied.
*2 These are references. Depending on the environment and condition, the number vary.
*3 Extinction ratio -36.8dB is measured in the condition that the initial extinction ratio is -40dB and there is the splice with 0.6 degree of rotation offset.
*4 This value is references. Depending on the type of fiber and condition of fiber on splicer, the number can vary.
Standard Package and Accessories
| Item | Part Number | Qty S185PMROF | Qty S185PMROF | ||||
|
| ||||||
| S185ROF Main body | S185ROF-X-A-0001 |
|
| ||||
| S185PMROF Main body | S185PMROF-X-A-0001 |
|
| ||||
| Hard Carrying Case | HCC-12 |
|
| ||||
| AC Adapter | S982A |
|
| ||||
| AC Cable Cord | - |
|
| ||||
| Z Stage Lock | ZL-01 |
|
| ||||
| Spare Electrode | - |
|
| ||||
| Change Tool for Vertical Electrode | - |
|
| ||||
| Electrode Sharpener | D5111 |
|
| ||||
| Cleaning Brush | VGC-01 |
|
| ||||
| User Manual | - |
|
|
Optional Components
| Item | Part Number | Qty |
| 160μm Coating Fiber Holder | S713S-160 | 1pair |
| 250μm Coating Fiber Holder | S713S-250 | 1pair |
| 400μm Coating Fiber Holder | S713S-400 | 1pair |
| 650μm Coating Fiber Holder | S713S-650 | 1pair |
| 900μm Coating Fiber Holder | S713S-900 | 1pair |
| 1300μm Coating Fiber Holder | S713S-1300 | 1pair |
| Customized Fiber Holder*5 | S713S-XXX | 1pair |
| USB Cable | USB-01 | 1 |
| Wi-Fi Dongle | WFD-01 | 1 |
*5 Available Suitable size Fiber holder depending on the coating diameter of splicing fiber.
Specification
| Description | S185ROF | S185PMROF |
| Heat source for splicing | ROF (Ring of Fire, Three electrodes Arc-discharging) | ROF (Ring of Fire, Three electrodes Arc-discharging) |
| Applicable fibers*1 | SM, MM, DS, NZDS, High-Index, EDF, LDF | SM, MM, DS, NZDS, High-Index, EDF, LDF, PMF |
| Cladding diameter | 125 to 800μm | 125 to 800μm |
| Coating diameter | 160 to 2000μm (In Fiber holder) 160 to 900μm (Coating clamp splice) | 160 to 1300μm (In Fiber holder) 160 to 900μm (Coating clamp splice) |
| Fiber cleave length | 4mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice) | 4mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice) |
| Typical splice loss*2 | SM(ITU-T G652): 0.014dB | SM(ITU-T G652): 0.014dB |
| Typical extinction ratio*2 | - | PANDA: -36.8dB*3 (Angle offset: 0.6degree) |
| Return loss | >60dB | >60dB |
| Typical splice time*4 | 15s (SM by cladding clamp splice) | 15s (SM by cladding clamp splice) 40s (PANDA by cladding clamp splice) |
| Tension strength | 1.96 (+0% to +20%) | 1.96 (+0% to +20%) |
| Applicable protection sleeve length | 10 to 60mm | 10 to 60mm |
| Typical heat time | 35s (S922:40mm sleeve) | 35s (S922:40mm sleeve) |
| Splice programs | Max.200 | Max.200 |
| Heater programs | Max.100 | Max.100 |
| Splice data storage | Max. 1000 including 4 images before and after splice | Max. 1000 including 4 images before and after splice |
| Fiber image magnification on LCD | 104X, 278X or 556X | 104X, 278X or 556X |
| Dimension | 210W x 180D x 150H mm | 210W x 180D x 150H mm |
| Weight (without Battery) | 4.55kg | 4.8kg |
| Monitor | 4.3” wide color LCD with touch panel | 4.3” wide color LCD with touch panel |
| Data output | USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port | USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port |
| Operating temperature | 0 to 40°C | 0 to 40°C |
| Storage temperature | -40 to 60°C | -40 to 60°C |
| Humidity | 0 to 90% (Non-condensing) | 0 to 90% (Non-condensing) |
| Power source | AC input 100 to 240V (50/60Hz) | AC input 100 to 240V (50/60Hz) |
*1 Fibers should be applied to ITU-T standard. In case of other fibers, depending on the type of fiber, the optimization of splice program may be needed or the splice result may not be satisfied.
*2 These are references. Depending on the environment and condition, the number vary.
*3 Extinction ratio -36.8dB is measured in the condition that the initial extinction ratio is -40dB and there is the splice with 0.6 degree of rotation offset.
*4 This value is references. Depending on the type of fiber and condition of fiber on splicer, the number can vary.
Standard Package and Accessories
| Item | Part Number | Qty S185PMROF | Qty S185PMROF | ||||
|
| ||||||
| S185ROF Main body | S185ROF-X-A-0001 |
|
| ||||
| S185PMROF Main body | S185PMROF-X-A-0001 |
|
| ||||
| Hard Carrying Case | HCC-12 |
|
| ||||
| AC Adapter | S982A |
|
| ||||
| AC Cable Cord | - |
|
| ||||
| Z Stage Lock | ZL-01 |
|
| ||||
| Spare Electrode | - |
|
| ||||
| Change Tool for Vertical Electrode | - |
|
| ||||
| Electrode Sharpener | D5111 |
|
| ||||
| Cleaning Brush | VGC-01 |
|
| ||||
| User Manual | - |
|
|
Optional Components
| Item | Part Number | Qty |
| 160μm Coating Fiber Holder | S713S-160 | 1pair |
| 250μm Coating Fiber Holder | S713S-250 | 1pair |
| 400μm Coating Fiber Holder | S713S-400 | 1pair |
| 650μm Coating Fiber Holder | S713S-650 | 1pair |
| 900μm Coating Fiber Holder | S713S-900 | 1pair |
| 1300μm Coating Fiber Holder | S713S-1300 | 1pair |
| Customized Fiber Holder*5 | S713S-XXX | 1pair |
| USB Cable | USB-01 | 1 |
| Wi-Fi Dongle | WFD-01 | 1 |
*5 Available Suitable size Fiber holder depending on the coating diameter of splicing fiber.
