| Detector | Image Intensified UV Tube |
| (S20B Cathode Image Diode) | |
| Input Optic: Fused Silica | |
| Phosphor: | P43 monochromatic green |
| Spectral Sensitivity: | 200-800 nm |
| Objective Lens: | Focal Length: 25mm |
| Aperture Range: ƒ/ 2.8 to ƒ/ 16 | |
| Material: UV Quartz | |
| Min. Object Distance: | 178 mm (7”) to infinity |
| Power: | (1) standard "C" cell alkaline battery |
| Resolution: | > 50 lp/mm |
| Dimensions: | 19 x 18 x 5 cm (7.5" x 7.1" x 2.2"). |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |

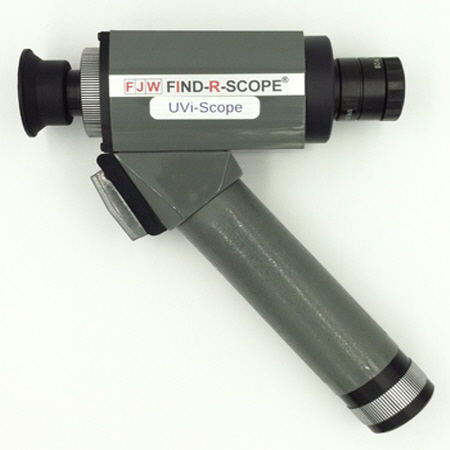

85300UV UVi-Scope
|
|
| Detector | Image Intensified UV Tube |
| (S20B Cathode Image Diode) | |
| Input Optic: Fused Silica | |
| Phosphor: | P43 monochromatic green |
| Spectral Sensitivity: | 200-800 nm |
| Objective Lens: | Focal Length: 25mm |
| Aperture Range: ƒ/ 2.8 to ƒ/ 16 | |
| Material: UV Quartz | |
| Min. Object Distance: | 178 mm (7”) to infinity |
| Power: | (1) standard "C" cell alkaline battery |
| Resolution: | > 50 lp/mm |
| Dimensions: | 19 x 18 x 5 cm (7.5" x 7.1" x 2.2"). |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F) |
85300UV UVi-Scope
|
|
