| Field of View: | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity: | Extended 350-1550 nm |
| Lens: | 50mm, ƒ/1.8 C-mount lens |
| Standard Focal Range: | 1m, (39.37") to infinity |
| Focal Range w/CU lens | ~ 195mm - 240mm (7.7 - 9.4") |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity: | 800 nm |
| Resolution: | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life: | >98-hours continuous |
| Sensitivity Test: | See 1550nm, 400µW LED @ 2m |
| Operating Temperature: | -32° to 46°C, (-25 to 115°F)
|

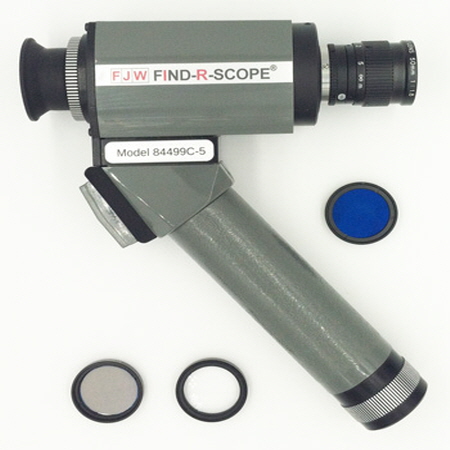

FIND-R-SCOPE Laser Application Kit, Includes the following items: | 84499C-5, 350-1550nm Hand-Held Infrared Viewer | LP830-30.5, Visible Blocking Filter | CU400-30.5, Close-Up Lens | Ni200-30.5, Neutral Density Filter
- Hand-Held
- Self-Contained
- 50mm f/1.8 C-Mount Lens
- User Adjustable Eyepiece
- Includes Visible Blocking Filter
- Includes CU400-30.5 Close-Up Lens
- Includes Ni200-30.5 Vis-NIR Neutral Density Filter
| - Native C-Mount Capability
- Accepts Optional Filters
- Accepts Optional Lenses
- Relay Lens for Video Out. (Option)
- Standard Tripod Mount
- Includes Battery
- Includes Hard Side Case
- 12-Month Limited Warranty
|
