| Field of View : | 24° |
| Magnification: | ~ 1:1 |
| Spectral Sensitivity : | Extended 350-1550nm |
| Lens: | 25mm, ƒ/1.6 C-mount objective lens |
| Standard Focal Range : | 200mm, (7.8") to infinity |
| Regions Displayed: | Near UV, Visible, Near-IR |
| Peak Sensitivity : | 800nm |
| Resolution | 40 lp/mm |
| Display: | P20 Phosphor |
| Power: | (1) standard "C" cell alkaline battery |
| Battery Life : | >98-hours continuous |
| Sensitivity Test : | See 1550nm, 400µW LED @ 2m |
| Operating Temperature | -32° to 46°C, (-25 to 115°F) |

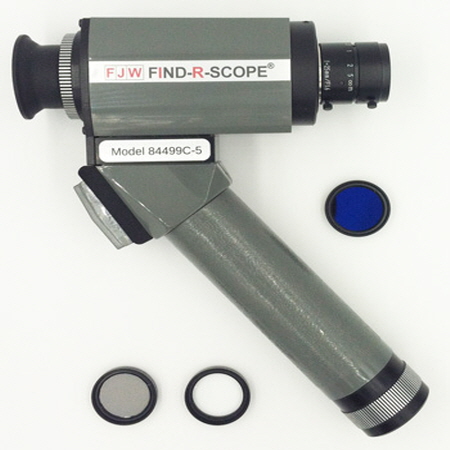

FIND-R-SCOPE Laser Application Kit, Includes the following items: | 84499C-5, Extended 350-1550nm Hand-Held Infrared Viewer | LP830-27, Visible Blocking Filter | CU400-27, Close-Up Lens | Ni200-27, Neutral Density Filter
|
|
